MK1412 - MPEG Audio Clock Synthesizer

Product Overview

Integrated Circuit Systems

📥 Download Datasheet

MK1412 MPEG Audio Clock Synthesizer by Integrated Circuit Systems - Datasheet Preview — Datasheet preview – MK1412

Datasheet Details

Part number	MK1412
Manufacturer	Integrated Circuit Systems
File Size	61.61 KB
Description	MPEG Audio Clock Synthesizer
Datasheet	MK1412 Datasheet

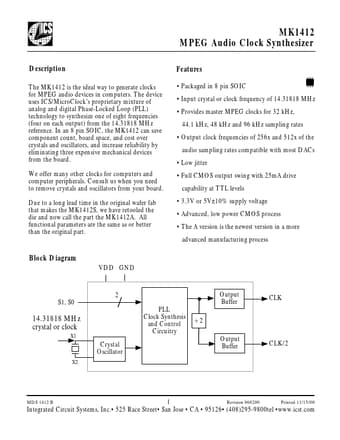

Additional preview pages of the MK1412 datasheet.

Product details

Description

The MK1412 is the ideal way to generate clocks for MPEG audio devices in computers.

Features

Packaged in 8 pin SOIC.
Input crystal or clock frequency of 14.31818 MHz.
Provides master MPEG clocks for 32 kHz, 44.1 kHz, 48 kHz and 96 kHz sampling rates.
Output clock frequencies of 256x and 512x of the audio sampling rates compatible with most DACs.
Low jitter.
Full CMOS output swing with 25mA drive capability at TTL levels.
3.3V or 5V±10% supply voltage.
Advanced, low power CMOS process.
The A version is the.
