MK1411 - NTSC/PAL Clock Source

Product Overview

Integrated Circuit Systems

Part number	MK1411
Manufacturer	Integrated Circuit Systems
File Size	63.41 KB
Description	NTSC/PAL Clock Source
Datasheet	MK1411 Datasheet
Note	This datasheet PDF includes multiple part numbers: MK1411, MK1410. Please refer to the document for exact specifications by model.

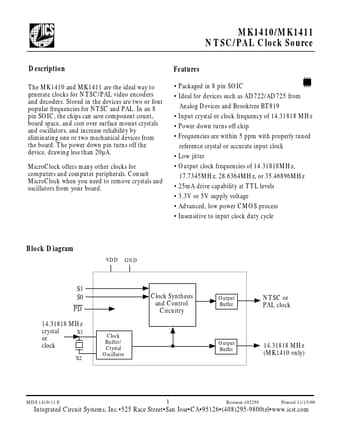

Additional preview pages of the MK1411 datasheet.

The MK1410 and MK1411 are the ideal way to generate clocks for NTSC/PAL video encoders and decoders. Stored in the devices are two or four popular frequencies for NTSC and PAL. In an 8 pin SOIC, the chips can save component count, board space, and cost over surface mount crystals and oscillators, and increase reliability by eliminating one or two mechanical devices from the board. The power down pin turns off the device, drawing less than 20µA. MicroClock offers many other clocks for computers.
