M2006-12A, M20 - VCSO BASED FEC CLOCK PLL WITH HITLESS SWITCHING

Name: M2006-12A
SKU: M2006-12A-208291

Integrated Circuit Systems

📥 Download Datasheet

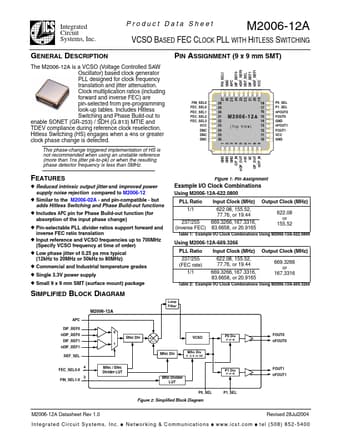

M2006-12A Datasheet Preview — This datasheet PDF includes multiple part numbers: M2006-12A, M20. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	M2006-12A, M20
Manufacturer	Integrated Circuit Systems
File Size	419.09 KB
Description	VCSO BASED FEC CLOCK PLL WITH HITLESS SWITCHING
Datasheet	M20-0612.pdf
Note	This datasheet PDF includes multiple part numbers: M2006-12A, M20. Please refer to the document for exact specifications by model.

M2006-12A Product details

Description

The M2006-12A is a VCSO (Voltage Controlled SAW Oscillator) based clock generator PLL designed for clock frequency translation and jitter attenuation.

Features

Reduced intrinsic output jitter and improved power supply noise rejection compared to M2006-12.
Similar to the M2006-02A - and pin-compatible - but adds Hitless Switching and Phase Build-out functions.
Includes APC pin for Phase Build-out function (for absorption of the input phase change).
Pin-selectable PLL divider ratios support forward and inverse FEC ratio translation.
Input reference and VCSO frequencies up to 700MHz (Specify VCSO frequency at time of order).
