M2006-12 - VCSO BASED FEC CLOCK PLL / HITLESS SWITCHING OPTION

Description

The M2006-02 and -12 are VCSO (Voltage Controlled SAW Oscillator) based clock generator PLLs designed for clock frequency translation and jitter attenuation.

Features

  • Pin-selectable PLL divider ratios support forward and inverse FEC ratio translation, including:.
  • 255/238 (OTU1) Mapping and 238/255 De-mapping.
  • 255/237 (OTU2) Mapping and 237/255 De-mapping.
  • 255/236 (OTU3) Mapping and 236/255 De-mapping Example I/O Clock Frequency Combinations Using M2006-02/-12-622.0800 and Inverse FEC Ratios FEC PLL Ratio Mfec / Rfec 1/1 238/255 237/255 236/255 Base Input Rate 1 (MHz) 622.0800 666.5143 669.3266 672.1627 Output Clock (eithe.

📥 Download Datasheet

Datasheet Details

Part number M2006-12
Manufacturer Integrated Circuit Solution Inc
File Size 83.76 KB
Description VCSO BASED FEC CLOCK PLL / HITLESS SWITCHING OPTION
Datasheet download datasheet M2006-12 Datasheet

📁 Similar Datasheet

  • M2006-12A - VCSO BASED FEC CLOCK PLL WITH HITLESS SWITCHING (Integrated Circuit Systems)
  • M2006C - PIR Motion Detector (MOS)
  • M2001 - Clock Oscillator (MTRONPTI)
  • M2001C - Ceramic/Cermet Attenuator (Vishay Siliconix)
  • M2004-01 - Frequency Synthesizer (ICS)
  • M2004-02 - Frequency Synthesizer (ICS)
  • M20071 - Multi-constellation GNSS receiver (Antenova)
  • M200FGE-L20 - TFT LCD (CHIMEI Innolux)
  • M200FGE-L23 - TFT LCD (CHIMEI Innolux)
  • M200FGJ-L2U - TFT LCD (CHIMEI Innolux)
Other Datasheets by Integrated Circuit Solution Inc
  • M2006-02 - VCSO BASED FEC CLOCK PLL / HITLESS SWITCHING OPTION
  • M2080 - VCSO FEC PLL WITH AUTOSWITCH FOR SONET/OTN
  • M2080-2087 - VCSO FEC PLL WITH AUTOSWITCH FOR SONET/OTN
  • M2081 - VCSO FEC PLL WITH AUTOSWITCH FOR SONET/OTN
  • M2082 - VCSO FEC PLL WITH AUTOSWITCH FOR SONET/OTN
  • M2085 - VCSO FEC PLL WITH AUTOSWITCH FOR SONET/OTN
  • M2086 - VCSO FEC PLL WITH AUTOSWITCH FOR SONET/OTN
  • M2087 - VCSO FEC PLL WITH AUTOSWITCH FOR SONET/OTN

Full PDF Text Transcription

Click to expand full text

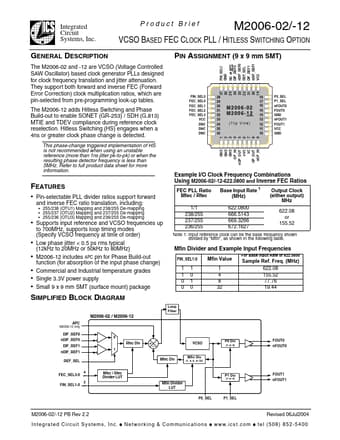

Integrated Circuit Systems, Inc. Product Brief M2006-02/-12 VCSO BASED FEC CLOCK PLL / HITLESS SWITCHING OPTION PIN ASSIGNMENT (9 x 9 mm SMT) FIN_SEL1 GND FIN_SEL0 FEC_SEL0 FEC_SEL1 FEC_SEL2 FEC_SEL3 VCC DNC DNC DNC NC or APC DIF_REF0 nDIF_REF0 REF_SEL DIF_REF1 nDIF_REF1 VCC GENERAL DESCRIPTION The M2006-02 and -12 are VCSO (Voltage Controlled SAW Oscillator) based clock generator PLLs designed for clock frequency translation and jitter attenuation. They support both forward and inverse FEC (Forward Error Correction) clock multiplication ratios, which are pin-selected from pre-programming look-up tables. The M2006-12 adds Hitless Switching and Phase Build-out to enable SONET (GR-253) / SDH (G.813) MTIE and TDEV compliance during reference clock reselection.
