ICS1726-11 - Low EMI Clock Generator

Integrated Circuit Systems

Datasheet Details

Part number	ICS1726-11
Manufacturer	Integrated Circuit Systems
File Size	189.51 KB
Description	Low EMI Clock Generator
Datasheet	ICS1726-11_IntegratedCircuitSystems.pdf

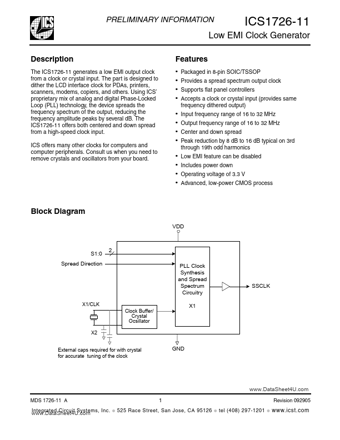

The ICS1726-11 generates a low EMI output clock from a clock or crystal input.

Packaged in 8-pin SOIC/TSSOP Provides a spread spectrum output clock Supports flat panel controllers Accepts a clock or crystal input (provides same frequency dithered output) Input frequency range of 16 to 32 MHz Output frequency range of 16 to 32 MHz Center and down spread Peak reduction by 8 dB to 16 dB typical on 3rd through 19th odd harmonics Low EMI feature can be disable.
