ICS1708 - QuickSaver Charge Control IC for Nickel-Cadmium and Nickel-Metal Hydride Batteries

Description

The ICS1708 is a low cost 8 pin CMOS control IC for the intelligent charging of either nickel-cadmium (NiCd) or nickel-metal hydride (NiMH) batteries.

The ICS1708 uses a pulsed-current charging technique together with multiple voltage slope termination methods.

Features

  • Charge termination methods include: Voltage slope (+∆V/dt and +/- peak detect), and Fast charge time out to maintenance mode Four stage charge sequence: SoftStart conditioning, Fast charge, Topping charge, and Maintenance charge Three (3) user selectable charge rates: 15 minutes (4C), 60 minutes (1C), 150 minutes (C/2.5) Continuous polling mode for battery detection Adjustable open circuit (no battery) volt.

📥 Download Datasheet

Datasheet Details

Part number ICS1708
Manufacturer Unknown Manufacturer
File Size 936.83 KB
Description QuickSaver Charge Control IC for Nickel-Cadmium and Nickel-Metal Hydride Batteries
Datasheet download datasheet ICS1708 Datasheet

📁 Similar Datasheet

  • ICS1720 - Charge Controller (Integrated Circuit Systems)
  • ICS1722 - 16 Pin Quicksaver Charge Controller For Ni-cd & Ni-mh Batteries (Galaxy Power)
  • ICS1722 - Charge Controller (Integrated Circuit Systems)
  • ICS1726-11 - Low EMI Clock Generator (Integrated Circuit Systems)
  • ICS1394 - Video Dot CLock Generator (ICS)
  • ICS1493-17 - CLOCK SYNTHESIZER (Renesas)
  • ICS1493-17 - Clock Synthesizer (ICST)
  • ICS1493A-19 - CLOCK GENERATOR (Integrated Device Technology)
  • ICS1522 - User-Programmable Video Clock Generator/ Line-Locked Clock Regenerator (Integrated Circuit Systems)
  • ICS1523 - Video Clock Synthesizer (IDT)
Other Datasheets by ETC
  • ICS1700A - QuickSaver Charge Controller for Nickel-Cadmium and Nickel-Metal Hydride Batteries
  • ICS1702 - QuickSaver Charge Controller for Nickel-Cadmium and Nickel-Metal Hydride Batteries
  • ICS94222 - Programmable System Frequency Generator for PII/III™

Full PDF Text Transcription

Click to expand full text

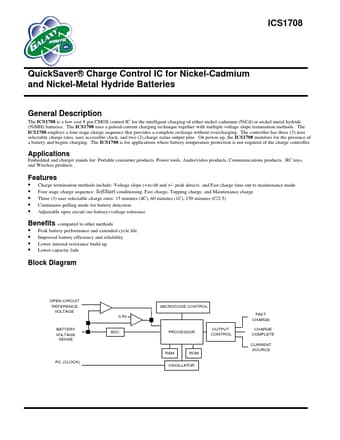

ICS1708 QuickSaver® Charge Control IC for Nickel-Cadmium and Nickel-Metal Hydride Batteries General Description The ICS1708 is a low cost 8 pin CMOS control IC for the intelligent charging of either nickel-cadmium (NiCd) or nickel-metal hydride (NiMH) batteries. The ICS1708 uses a pulsed-current charging technique together with multiple voltage slope termination methods. The ICS1708 employs a four stage charge sequence that provides a complete recharge without overcharging. The controller has three (3) user selectable charge rates, user accessible clock, and two (2) charge status output pins. On power-up, the ICS1708 monitors for the presence of a battery and begins charging. The ICS1708 is for applications where battery temperature protection is not required of the charge controller.
