M2087, M20 - VCSO FEC PLL WITH AUTOSWITCH FOR SONET/OTN

Name: M2087
SKU: M2087-208309

Integrated Circuit Solution Inc

📥 Download Datasheet

M2087 Datasheet Preview — This datasheet PDF includes multiple part numbers: M2087, M20. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	M2087, M20
Manufacturer	Integrated Circuit Solution Inc
File Size	501.80 KB
Description	VCSO FEC PLL WITH AUTOSWITCH FOR SONET/OTN
Datasheet	M20-80.pdf
Note	This datasheet PDF includes multiple part numbers: M2087, M20. Please refer to the document for exact specifications by model.

M2087 Product details

Description

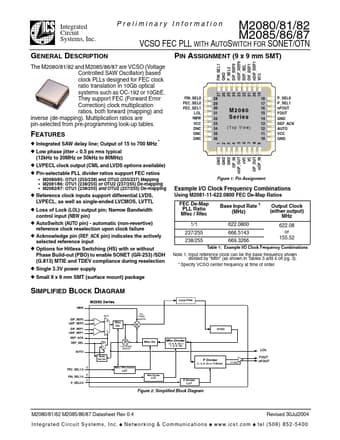

The M2080/81/82 and M2085/86/87 are VCSO (Voltage Controlled SAW Oscillator) based clock PLLs designed for FEC clock ratio translation in 10Gb optical systems such as OC-192 or 10GbE.

Features

Integrated SAW delay line; Output of 15 to 700 MHz.
Low phase jitter < 0.5 ps rms typical (12kHz to 20MHz or 50kHz to 80MHz).
LVPECL clock output (CML and LVDS options available).
Pin-selectable PLL divider ratios support FEC ratios.
M2080/85: OTU1 (255/238) and OTU2 (255/237) Mapping.
M2081/86: OTU1 (238/255) or OTU2 (237/255) De-mapping.
M2082/87: OTU1 (238/255) and OTU2 (237/255) De-mapping 28 29 30 31 32 33 34 35 36 M2080 Series (Top Vi.
