M2081 - VCSO FEC PLL WITH AUTOSWITCH FOR SONET/OTN

Download the M2081 datasheet PDF (M20 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for vcso fec pll with autoswitch for sonet/otn.

Description

The M2080/81/82 and M2085/86/87 are VCSO (Voltage Controlled SAW Oscillator) based clock PLLs designed for FEC clock ratio translation in 10Gb optical systems such as OC-192 or 10GbE.

Features

  • Integrated SAW delay line; Output of 15 to 700 MHz.
  • Low phase jitter < 0.5 ps rms typical (12kHz to 20MHz or 50kHz to 80MHz).
  • LVPECL clock output (CML and LVDS options available).
  • Pin-selectable PLL divider ratios support FEC ratios.
  • M2080/85: OTU1 (255/238) and OTU2 (255/237) Mapping.
  • M2081/86: OTU1 (238/255) or OTU2 (237/255) De-mapping.
  • M2082/87: OTU1 (238/255) and OTU2 (237/255) De-mapping 28 29 30 31 32 33 34 35 36 M2080 Series (Top Vi.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (M20-80.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number M2081
Manufacturer Integrated Circuit Solution Inc
File Size 501.80 KB
Description VCSO FEC PLL WITH AUTOSWITCH FOR SONET/OTN
Datasheet download datasheet M2081 Datasheet

📁 Similar Datasheet

  • M208 - Single Chip Organ (STMicroelectronics)
  • M208-A4 - Contact Image Sensor Module (CMOS Sensor)
  • M208-A6 - Contact Image Sensor Module (CMOS Sensor)
  • M208-A8 - Contact Image Sensor Module (CMOS Sensor)
  • M20 - TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SILICON RECTIFIER (Dc Components)
  • M20-9993605 - 2.54mm Pitch SIL Vertical Pin Header (Harwin)
  • M20-999xxxx - 2.54mm Pitch SIL Vertical Pin Header (Harwin)
  • M2001 - Clock Oscillator (MTRONPTI)
  • M2001C - Ceramic/Cermet Attenuator (Vishay Siliconix)
  • M2004-01 - Frequency Synthesizer (ICS)
Other Datasheets by Integrated Circuit Solution Inc
  • M2080 - VCSO FEC PLL WITH AUTOSWITCH FOR SONET/OTN
  • M2080-2087 - VCSO FEC PLL WITH AUTOSWITCH FOR SONET/OTN
  • M2082 - VCSO FEC PLL WITH AUTOSWITCH FOR SONET/OTN
  • M2085 - VCSO FEC PLL WITH AUTOSWITCH FOR SONET/OTN
  • M2086 - VCSO FEC PLL WITH AUTOSWITCH FOR SONET/OTN
  • M2087 - VCSO FEC PLL WITH AUTOSWITCH FOR SONET/OTN
  • M2006-02 - VCSO BASED FEC CLOCK PLL / HITLESS SWITCHING OPTION
  • M2006-12 - VCSO BASED FEC CLOCK PLL / HITLESS SWITCHING OPTION

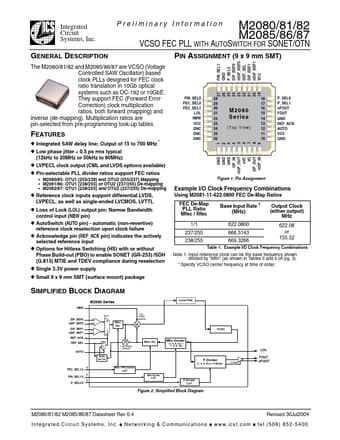

Full PDF Text Transcription

Click to expand full text
Integrated Circuit Systems, Inc. Preliminary Information VCSO FEC PLL WITH AUTOSWITCH FOR SONET/OTN PIN ASSIGNMENT (9 x 9 mm SMT) FIN_SEL1 GND P_SEL2 DIF_REF0 nDIF_REF0 REF_SEL DIF_REF1 nDIF_REF1 VCC FIN_SEL0 FEC_SEL0 FEC_SEL1 LOL NBW VCC DNC DNC DNC 27 26 25 24 23 22 21 20 19 M2080/81/82 M2085/86/87 GENERAL DESCRIPTION The M2080/81/82 and M2085/86/87 are VCSO (Voltage Controlled SAW Oscillator) based clock PLLs designed for FEC clock ratio translation in 10Gb optical systems such as OC-192 or 10GbE. They support FEC (Forward Error Correction) clock multiplication ratios, both forward (mapping) and inverse (de-mapping). Multiplication ratios are pin-selected from pre-programming look-up tables. FEATURES ◆ Integrated SAW delay line; Output of 15 to 700 MHz * ◆ Low phase jitter < 0.
