M208-A8 - Contact Image Sensor Module

📥 Download Datasheet

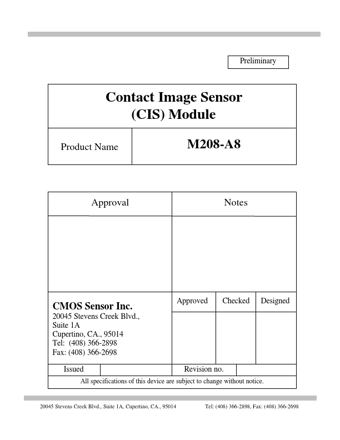

Preview of M208-A8 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number M208-A8
Manufacturer CMOS Sensor
File Size 55.47 KB
Description Contact Image Sensor Module
Datasheet download datasheet M208-A8-CMOSSensor.pdf

M208-A8 Product details

Description

The M208-A8 compact image sensor module is a contact type image sensing module that composes of a line of LED light source, a long Selfoc rod lens array, and 1344 pixels of photo-detector array.Input and output electronic contact is via a 8-pin connector.The cross section view and functional block diagram of the M208-A8 is shown in figure 1 Plastic and figure 2, respectively.housing LED light source The module is suitable to scan an A8 size (56 mm) document.Applications include
