IN25AA160N, IN25AA080N - NONVOLATILE ELECTRICALLY ERASABLE PROM

Name: IN25AA160N
SKU: IN25AA160N-956332

Integral

📥 Download Datasheet

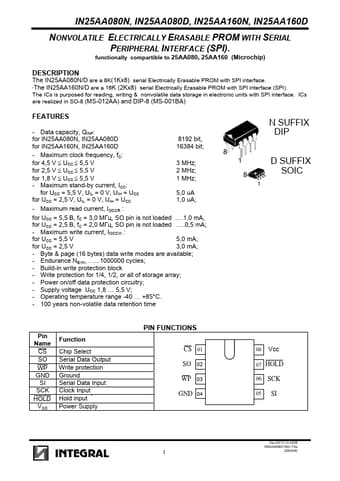

IN25AA160N Datasheet Preview — This datasheet PDF includes multiple part numbers: IN25AA160N, IN25AA080N. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IN25AA160N, IN25AA080N
Manufacturer	Integral
File Size	281.45 KB
Description	NONVOLATILE ELECTRICALLY ERASABLE PROM
Datasheet	IN25AA080N-Integral.pdf
Note	This datasheet PDF includes multiple part numbers: IN25AA160N, IN25AA080N. Please refer to the document for exact specifications by model.

IN25AA160N Product details

Description

The IN25АА080N/D are a 8K(1Kx8) serial Electrically Erasable PROM with SPI interface. The IN25АА160N/D are a 16K (2Kx8) serial Electrically Erasable PROM with SPI interface (SPI).

Features

- Data capacity, QINF: for IN25АА080N, IN25АА080D for IN25АА160N, IN25АА160D 8192 bit, 16384 bit; - Maximum clock frequency, fC: for 4,5 V ≤ UCC ≤ 5,5 V for 2,5 V ≤ UCC ≤ 5,5 V for 1,8 V ≤ UCC ≤ 5,5 V - Maximum stand-by current, ICC: for UCC = 5,5 V, UIL = 0 V, UIH = UCC for UCC = 2,5 V, UIL = 0 V, UIH = UCC - Maximum read current, IOCCR : 3 MHz; 2 MHz; 1 MHz; 5,0 uA 1,0 uA; for UCC = 5,5 В, fC = 3,0 МГц, SO pin is not loaded . …1,0 mA, for UCC = 2,5 В, fC = 2,0 МГц, SO pin is not loaded ….
