IN25AA020D, IN25AA020N - NONVOLATILE ELECTRICALLY ERASABLE PROM

Name: IN25AA020D
SKU: IN25AA020D-956327

Integral

📥 Download Datasheet

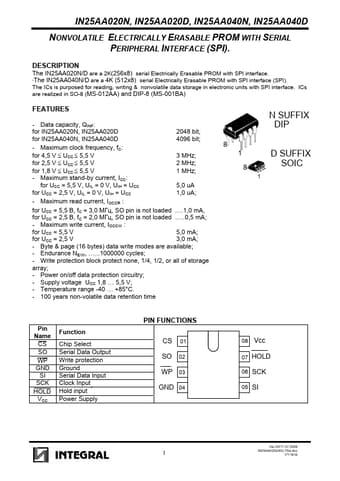

IN25AA020D Datasheet Preview — This datasheet PDF includes multiple part numbers: IN25AA020D, IN25AA020N. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IN25AA020D, IN25AA020N
Manufacturer	Integral
File Size	287.25 KB
Description	NONVOLATILE ELECTRICALLY ERASABLE PROM
Datasheet	IN25AA020N-Integral.pdf
Note	This datasheet PDF includes multiple part numbers: IN25AA020D, IN25AA020N. Please refer to the document for exact specifications by model.

IN25AA020D Product details

Description

The IN25АА020N/D are a 2K(256x8) serial Electrically Erasable PROM with SPI interface. The IN25АА040N/D are a 4K (512x8) serial Electrically Erasable PROM with SPI interface (SPI).

Features

- Data capacity, QINF: for IN25АА020N, IN25АА020D for IN25АА040N, IN25АА040D 2048 bit, 4096 bit; - Maximum clock frequency, fC: for 4,5 V ≤ UCC ≤ 5,5 V for 2,5 V ≤ UCC ≤ 5,5 V for 1,8 V ≤ UCC ≤ 5,5 V - Maximum stand-by current, ICC: for UCC = 5,5 V, UIL = 0 V, UIH = UCC for UCC = 2,5 V, UIL = 0 V, UIH = UCC 3 MHz; 2 MHz; 1 MHz; 5,0 uA 1,0 uA; - Maximum read current, IOCCR : for UCC = 5,5 В, fC = 3,0 МГц, SO pin is not loaded . …1,0 mA, for UCC = 2,5 В, fC = 2,0 МГц, SO pin is not loaded ….
