IN24LC08 - (IN24LC04/08) 8K 2.5V CMOS Serial EEPROMs

IK Semiconductor

📥 Download Datasheet

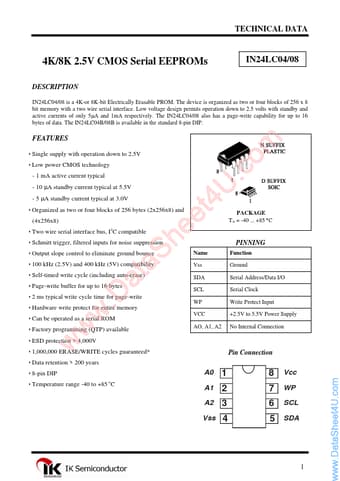

IN24LC08 Datasheet Preview — Preview of IN24LC08 PDF

Datasheet Details

Part number	IN24LC08
Manufacturer	IK Semiconductor
File Size	234.83 KB
Description	(IN24LC04/08) 8K 2.5V CMOS Serial EEPROMs
Datasheet	IN24LC08_IKSemiconductor.pdf

IN24LC08 Product details

Description

IN24LC04/08 IN24LC04/08 is a 4K-or 8K-bit Electrically Erasable PROM.The device is organized as two or four blocks of 256 x 8 bit memory with a two wire serial interface.Low voltage design permits operation down to 2.5 volts with standby and active currents of only 5µA and 1mA respectively.The IN24LC04/08 also has a page-write capability for up to 16 bytes of data.The IN24LC04B/08B is available in the standard 8-pin DIP.

Features

Single supply with operation down to 2.5V.
Low power CMOS technology - 1 mA active current typical - 10 µA standby current typical at 5.5V - 5 µA standby current typical at 3.0V.
Organized as two or four blocks of 256 bytes (2x256x8) and (4x256x8).
Two wire serial interface bus, I2C compatible.
Schmitt trigger, filtered inputs for noise suppression.
Output slope control to eliminate ground bounce.
100 kHz (2.5V) and 400 kHz (5V) com.
