ISP0912 - Bluetooth Low Energy Module

📥 Download Datasheet

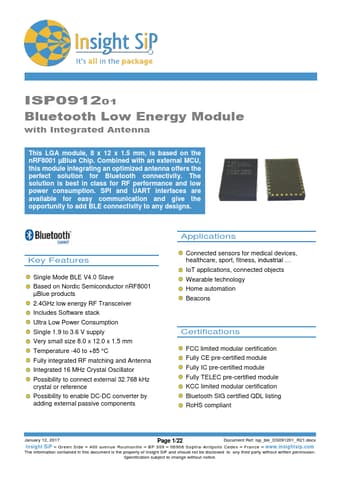

ISP0912 Datasheet Preview — Preview of ISP0912 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ISP0912
Manufacturer	Insight SiP
File Size	1.50 MB
Description	Bluetooth Low Energy Module
Datasheet	ISP0912-InsightSiP.pdf

ISP0912 Product details

Features

Single Mode BLE V4.0 Slave Based on Nordic Semiconductor nRF8001 µBlue products 2.4GHz low energy RF Transceiver Includes Software stack Ultra Low Power Consumption Single 1.9 to 3.6 V supply Very small size 8.0 x 12.0 x 1.5 mm Temperature -40 to +85 °C Fully integrated RF matching and Antenna Integrated 16 MHz Crystal Oscillator Possibility to connect external 32.768 kHz crystal or reference Possibility to enable DC-DC converter by adding external passive components.
