MU1503V - High Power RF LDMOS FET

Innogration

The MU1503V by Innogration is a High Power RF LDMOS FET. Below is the official datasheet preview.

📥 Download Datasheet

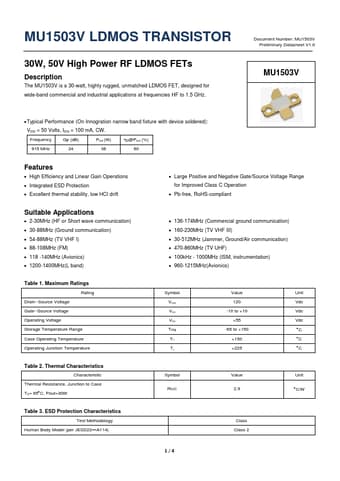

MU1503V High Power RF LDMOS FET by Innogration - Datasheet Preview — Official preview page of the **MU1503V** High Power RF LDMOS FET datasheet (Innogration).

Datasheet Details

Part number	MU1503V
Manufacturer	Innogration
File Size	316.77 KB
Description	High Power RF LDMOS FET
Datasheet	MU1503V-Innogration.pdf
Additional preview pages of the MU1503V datasheet.

MU1503V Product details

Description

The MU1503V is a 30-watt, highly rugged, unmatched LDMOS FET, designed for wide-band commercial and industrial applications at frequencies HF to 1.5 GHz. Typical Performance (On Innogration narrow band fixture with device soldered): VDD = 50 Volts, IDQ = 100 mA, CW.Frequency Gp (dB) Pout (W) D@Pout (%) 915 MHz 24 36 60

Features

High Efficiency and Linear Gain Operations.
Integrated ESD Protection.
Excellent thermal stability, low HCI drift.
Large Positive and Negative Gate/Source Voltage Range for Improved Class C Operation.
Pb-free, RoHS-compliant Suitable.
