The MU1506 by Innogration is a High Power RF LDMOS FET. Below is the official datasheet preview.

📥 Download Datasheet

MU1506 High Power RF LDMOS FET by Innogration - Datasheet Preview — Official preview page of the **MU1506** High Power RF LDMOS FET datasheet (Innogration).

Datasheet Details

Part number	MU1506
Manufacturer	Innogration
File Size	586.06 KB
Description	High Power RF LDMOS FET
Datasheet	MU1506-Innogration.pdf

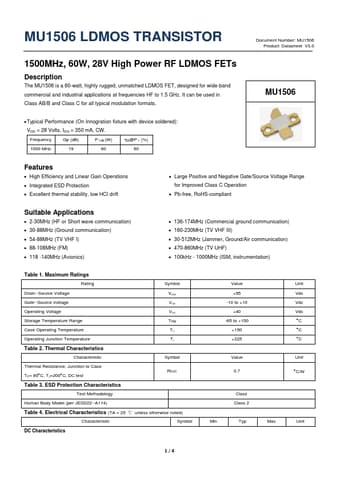

Additional preview pages of the MU1506 datasheet.

MU1506 Product details

Description

The MU1506 is a 60-watt, highly rugged, unmatched LDMOS FET, designed for wide-band commercial and industrial applications at frequencies HF to 1.5 GHz. Typical Performance (On Innogration fixture with device soldered): VDD = 28 Volts, IDQ = 350 mA, CW.Frequency Gp (dB) P-1dB (W) D@P-1 (%) 1000 MHz 19 60 60

Features

High Efficiency and Linear Gain Operations.
Integrated ESD Protection.
Excellent thermal stability, low HCI drift.
Large Positive and Negative Gate/Source Voltage Range for Improved Class C Operation.
Pb-free, RoHS-compliant Suitable.
