TLD2382-3ET - a three channel low-side driver

Name: TLD2382-3ET
SKU: TLD2382-3ET-1578797

Infineon

The TLD2382-3ET by Infineon is a a three channel low-side driver. Below is the official datasheet preview.

Datasheet Details

Part number	TLD2382-3ET
Manufacturer	Infineon
File Size	583.13 KB
Description	a three channel low-side driver
Datasheet	TLD2382-3ET-Infineon.pdf

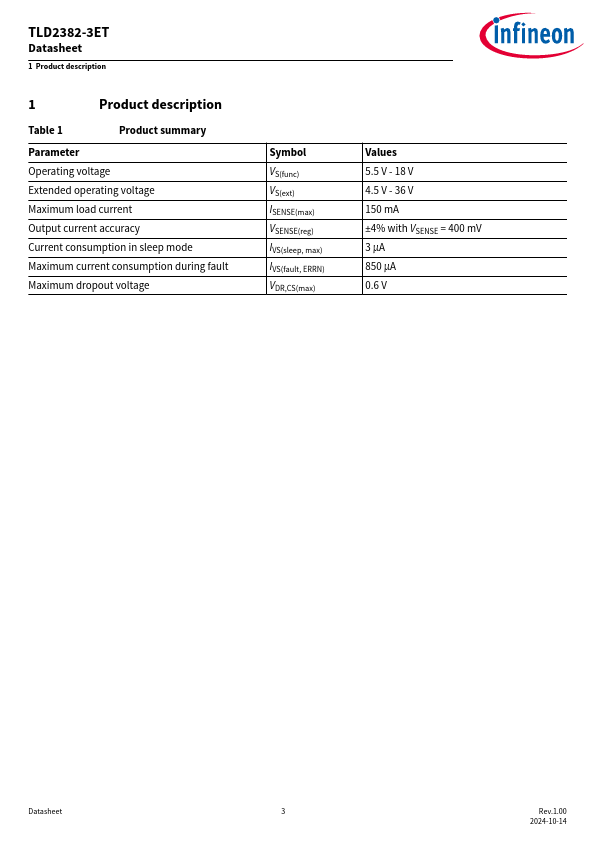

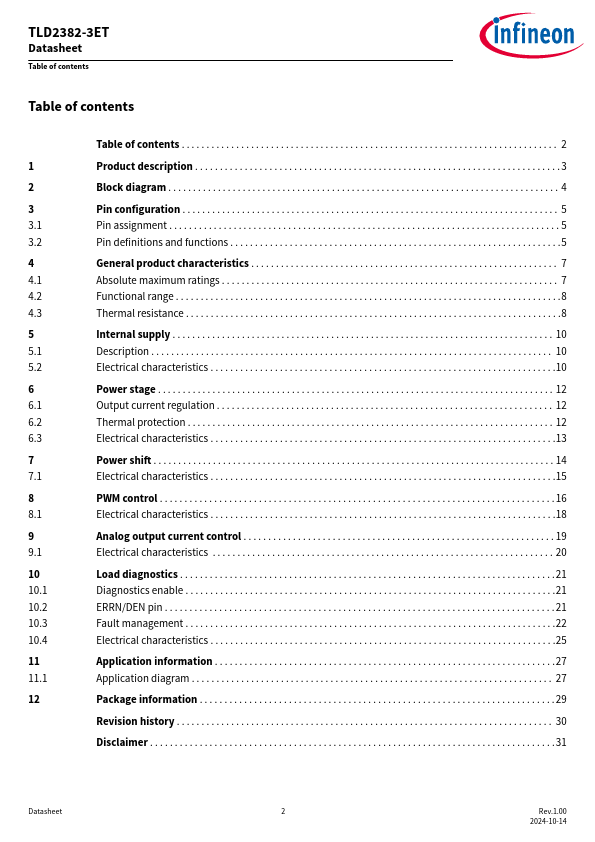

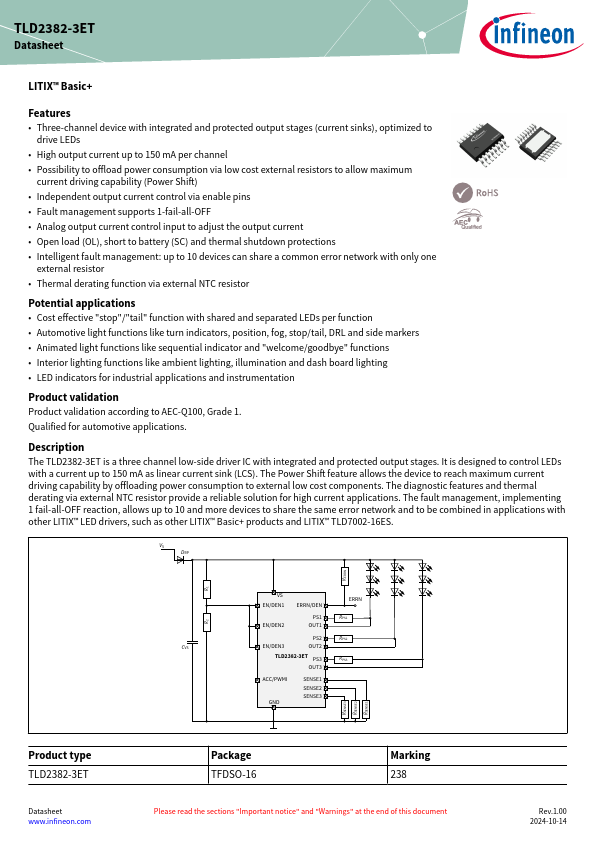

Additional preview pages of the TLD2382-3ET datasheet.

The TLD2382-3ET is a three channel low-side driver IC with integrated and protected output stages.

Three-channel device with integrated and protected output stages (current sinks), optimized to drive LEDs.
High output current up to 150 mA per channel.
Possibility to offload power consumption via low cost external resistors to allow maximum current driving capability (Power Shift).
Independent output current control via enable pins.
Fault management supports 1-fail-all-OFF.
Analog output current control input to adjust the output current.
