TLD2362-3ET - three channel low-side driver

Infineon

Datasheet Details

Part number	TLD2362-3ET
Manufacturer	Infineon ↗
File Size	631.09 KB
Description	three channel low-side driver
Datasheet	TLD2362-3ET-Infineon.pdf

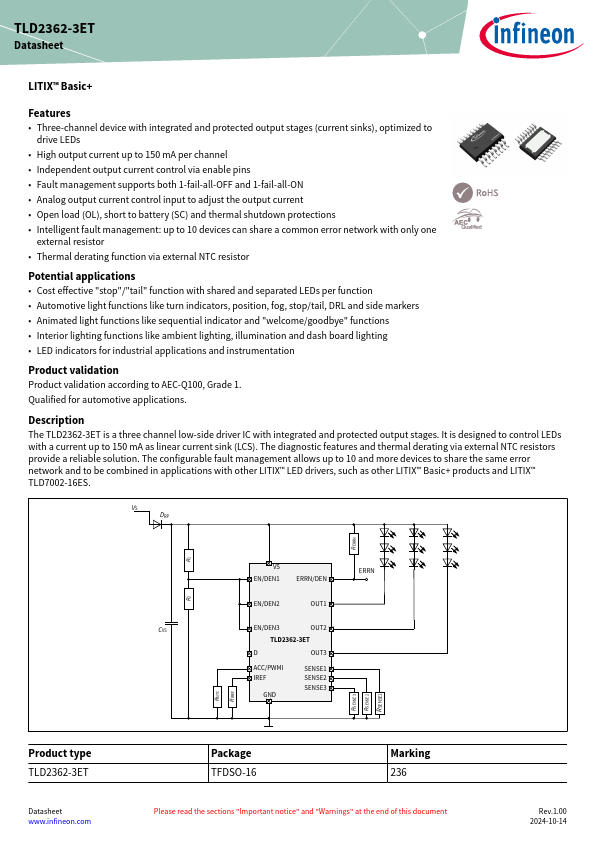

The TLD2362-3ET is a three channel low-side driver IC with integrated and protected output stages.

Three-channel device with integrated and protected output stages (current sinks), optimized to drive LEDs.
High output current up to 150 mA per channel.
Independent output current control via enable pins.
Fault management supports both 1-fail-all-OFF and 1-fail-all-ON.
Analog output current control input to adjust the output current.
Open load (OL), short to battery (SC) and thermal shutdown protections.
Intelligent fault management.
