TLD2326EL - three channel high side driver

Infineon

Datasheet Details

Part number	TLD2326EL
Manufacturer	Infineon ↗
File Size	661.91 KB
Description	three channel high side driver
Datasheet	TLD2326EL-Infineon.pdf

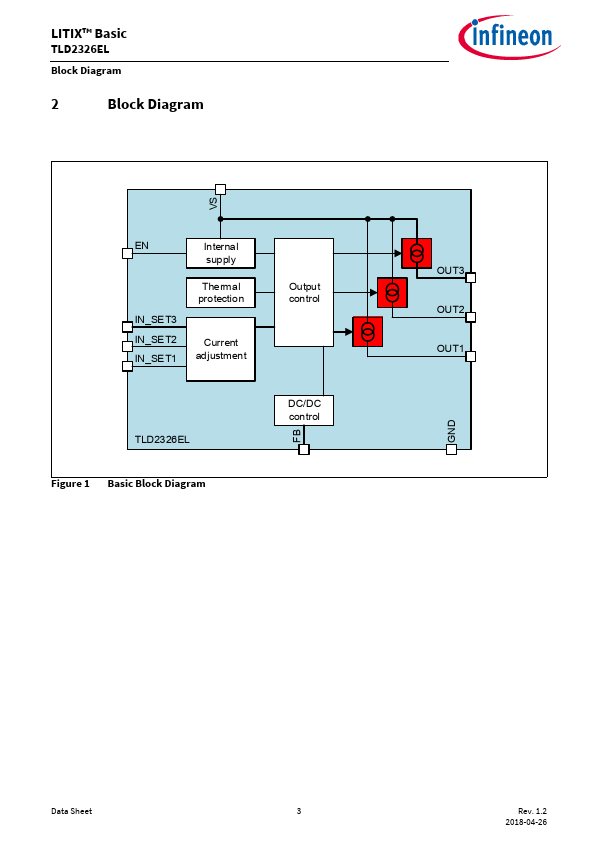

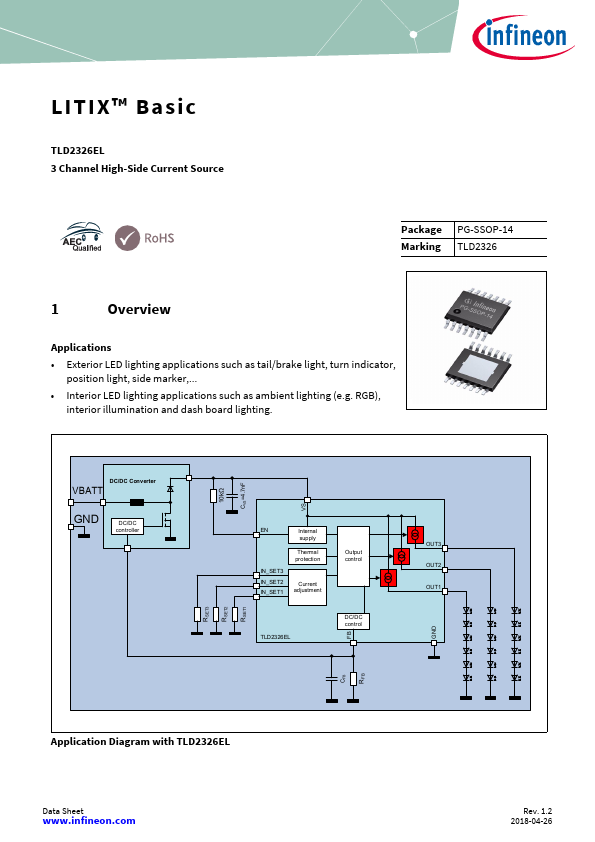

The LITIX™ Basic TLD2326EL is a three channel high side driver IC with integrated output stages.

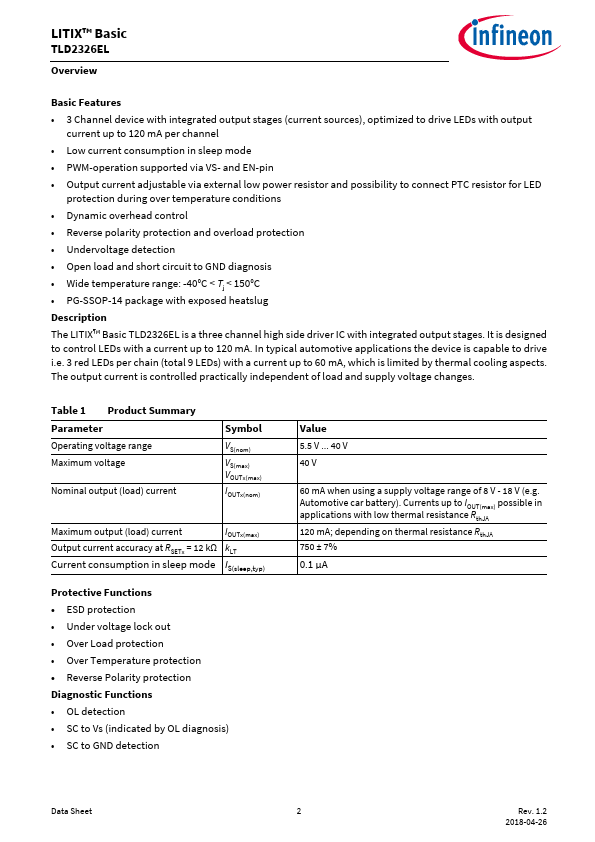

3 Channel device with integrated output stages (current sources), optimized to drive LEDs with output current up to 120 mA per channel.
Low current consumption in sleep mode.
PWM-operation supported via VS- and EN-pin.
Output current adjustable via external low power resistor and possibility to connect PTC resistor for LED protection during over temperature conditions.
Dynamic overhead control.
Reverse polarity protection and overload protec.
