ISC16DP15LM MOSFET

ISC16DP15LM Description

ISC16DP15LM MOSFET OptiMOSTM Power-Transistor, -150 V .

ISC16DP15LM Features

* P-Channel
* Very low on-resistance RDS(on) @ VGS=4.5 V
* 100% avalanche tested
* Logic Level
* Enhancement mode
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21 Product validation Fully qualified according to J

ISC16DP15LM Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS -150 V RDS(on),max 160 mΩ ID -22 A SuperSO8 8 7 65 56 78 1 23 4 4321 Drain Pin 5-8 Gate
* 1 Pin 4 Source
* 1: Internal body diode Pin 1-3 Type / Ordering Code ISC16DP15LM Package PG-TDSON-8 Marking 16DP15

📥 Download Datasheet

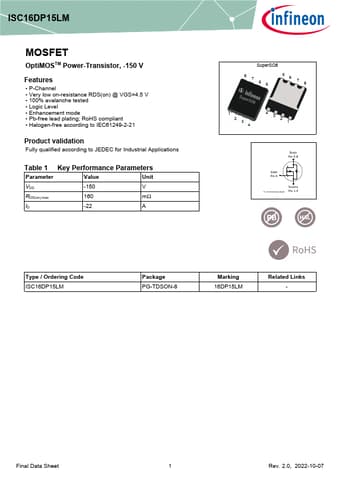

Preview of ISC16DP15LM PDF
datasheet Preview Page 2 datasheet Preview Page 3
