IPD50P04P4L-11 - Power Transistor

Infineon

📥 Download Datasheet

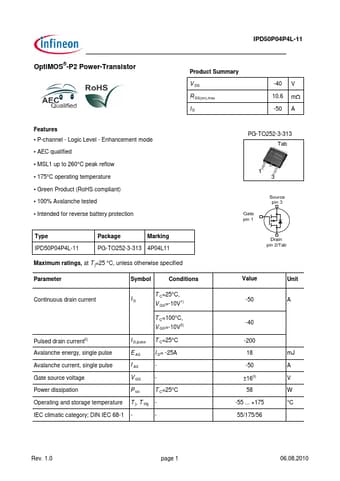

IPD50P04P4L-11 Datasheet Preview — Preview of IPD50P04P4L-11 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPD50P04P4L-11
Manufacturer	Infineon ↗
File Size	112.90 KB
Description	Power Transistor
Datasheet	IPD50P04P4L-11-Infineon.pdf

IPD50P04P4L-11 Product details

Features

P-channel - Logic Level - Enhancement mode.
AEC qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested.
Intended for reverse battery protection Product Summary V DS R DS(on),max ID -40 V 10.6 mW -50 A PG-TO252-3-313 Type IPD50P04P4L-11 Package Marking PG-TO252-3-313 4P04L11 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Condit.
