IPD50P03P4L-11 - Power Transistor

Infineon

📥 Download Datasheet

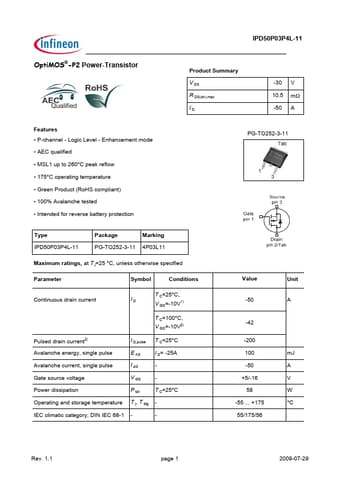

IPD50P03P4L-11 Datasheet Preview — Preview of IPD50P03P4L-11 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPD50P03P4L-11
Manufacturer	Infineon ↗
File Size	156.52 KB
Description	Power Transistor
Datasheet	IPD50P03P4L-11-Infineon.pdf

IPD50P03P4L-11 Product details

Features

P-channel - Logic Level - Enhancement mode.
AEC qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested.
Intended for reverse battery protection PG-TO252-3-11 Type IPD50P03P4L-11 Package Marking PG-TO252-3-11 4P03L11 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions Continuous drain current ID T C=25°C, V GS=-10V1) T.
