IPD50P04P4-13 - Power Transistor

Infineon

📥 Download Datasheet

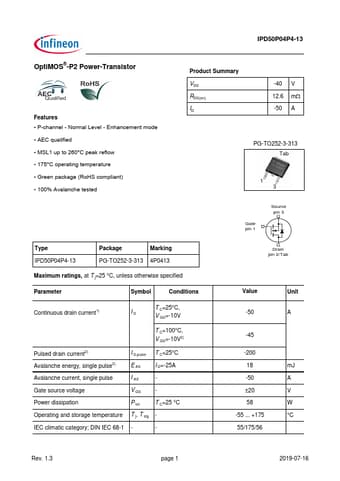

IPD50P04P4-13 Datasheet Preview — Preview of IPD50P04P4-13 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPD50P04P4-13
Manufacturer	Infineon ↗
File Size	413.41 KB
Description	Power Transistor
Datasheet	IPD50P04P4-13-Infineon.pdf

IPD50P04P4-13 Product details

Features

P-channel - Normal Level - Enhancement mode.
AEC qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green package (RoHS compliant).
100% Avalanche tested Product Summary VDS RDS(on) ID -40 V 12.6 mW -50 A PG-TO252-3-313 Tab 1 3 Gate pin 1 Source pin 3 Type IPD50P04P4-13 Package Marking PG-TO252-3-313 4P0413 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions Continuous drain.
