IKWH70N65WR6 - IGBT

Description

C Copyright © Infineon T Type IKWH70N65WR6 G E Package PG-TO247-3-STD-NN4.8 Marking H70EWR6 Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.10 2022-12-06 IKWH70N65WR6 TRENCHSTOP™ 5 WR6 technology in enhanced creepag

Features

  • VCE = 650 V.
  • IC = 70 A.
  • Pin-to-pin creepage distance > 4.8 mm.
  • Pin-to-pin clearance distance > 3.4 mm.
  • Monolithic diode optimized for PFC and welding.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IKW03N120H2 HighSpeed 2-Technology Infineon Technologies
IKW08T120 IGBT Infineon Technologies
IKW15T120 IGBT Infineon Technologies
IKW20N60H3 IGBT Infineon Technologies
IKW20N60T IGBT Infineon Technologies

Other Datasheets by Infineon

Part Number Description
IKWH75N65EH7 High speed and low saturation voltage 650V IGBT
IKWH20N65WR6 IGBT
IKWH30N67PR7 IGBT
IKWH40N65EH7 IGBT
IKWH50N65EH7 IGBT

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

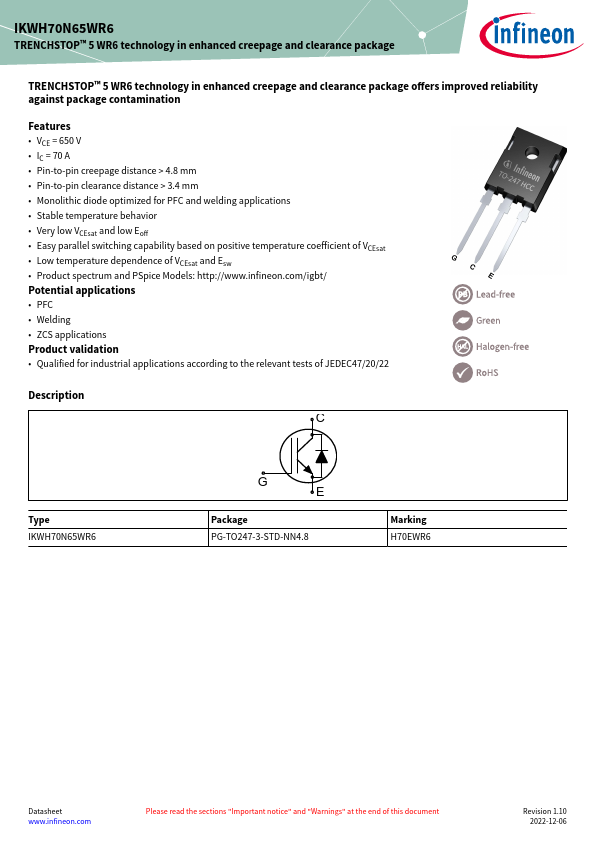

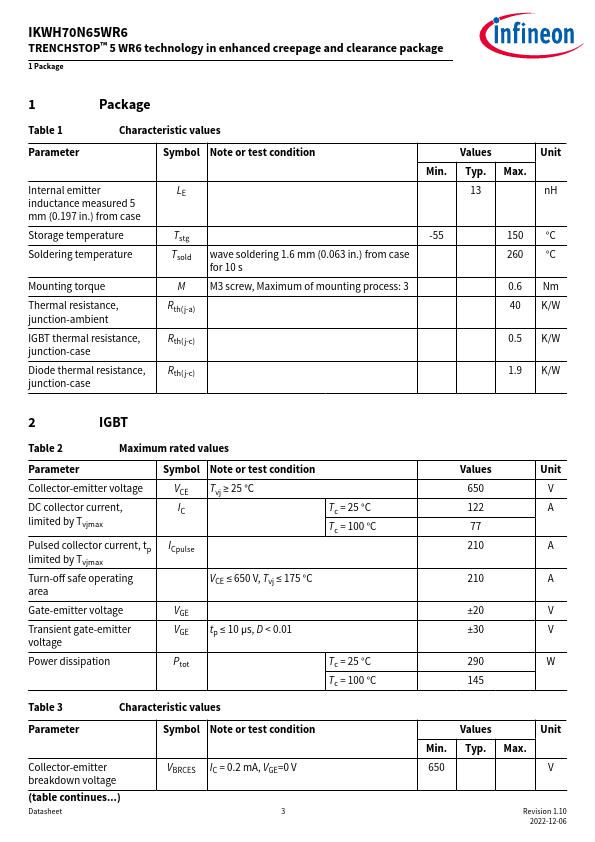

IKWH70N65WR6 TRENCHSTOP™ 5 WR6 technology in enhanced creepage and clearance package TRENCHSTOP™ 5 WR6 technology in enhanced creepage and clearance package offers improved reliability against package contamination Features • VCE = 650 V • IC = 70 A • Pin-to-pin creepage distance > 4.8 mm • Pin-to-pin clearance distance > 3.4 mm • Monolithic diode optimized for PFC and welding applications • Stable temperature behavior • Very low VCEsat and low Eoff • Easy parallel switching capability based on positive temperature coefficient of VCEsat • Low temperature dependence of VCEsat and Esw • Product spectrum and PSpice Models: http://www.infineon.
