FP75R12KT4P IGBT

FP75R12KT4P Description

FP75R12KT4P EconoPIM™3 Modul mit schnellem Trench/Feldstopp IGBT4 und Emitter Controlled 4 Diode und NTC / bereits aufgetragenem Thermal Interface Mat.

FP75R12KT4P Features

* Low switching losses
* Low VCEsat
* Tvj op = 150°C
* VCEsat with positive temperature coefficient Mechanical Features
* High power and thermal cycling capability
* Integrated NTC temperature sensor
* Copper base plate
* Solder contac

FP75R12KT4P Applications

* Auxiliary inverters
* Motor drives

📥 Download Datasheet

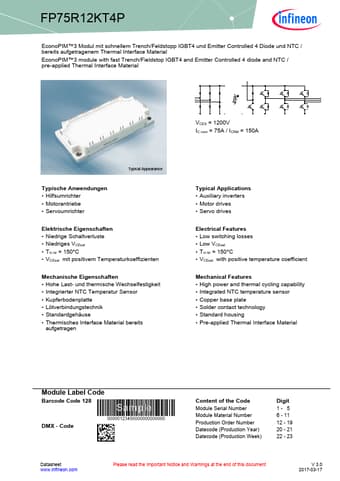

Preview of FP75R12KT4P PDF
datasheet Preview Page 2 datasheet Preview Page 3
