FP75R12KT4 IGBT

FP75R12KT4 Description

FP75R12KT4 EconoPIM™3 Modul mit schnellem Trench/Feldstopp IGBT4 und Emitter Controlled 4 Diode und NTC EconoPIM™3 module with fast Trench/Fieldstop I.

FP75R12KT4 Features

* Low switching losses
* Low VCEsat
* Tvj op = 150°C
* VCEsat with positive temperature coefficient Mechanical Features
* High power and thermal cycling capability
* Integrated NTC temperature sensor
* Copper base plate
* Solder contac

FP75R12KT4 Applications

* Auxiliary inverters
* Medical applications
* Motor drives

📥 Download Datasheet

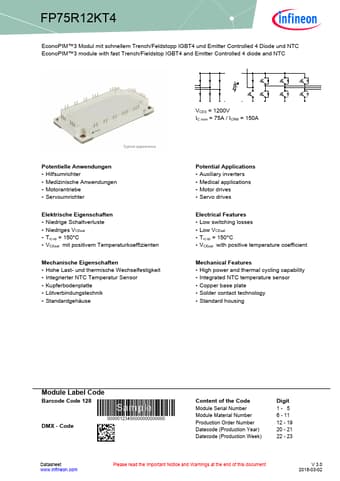

Preview of FP75R12KT4 PDF
datasheet Preview Page 2 datasheet Preview Page 3
