ESD3V3U4ULC - Transient Voltage Suppressor Diodes

Infineon

📥 Download Datasheet

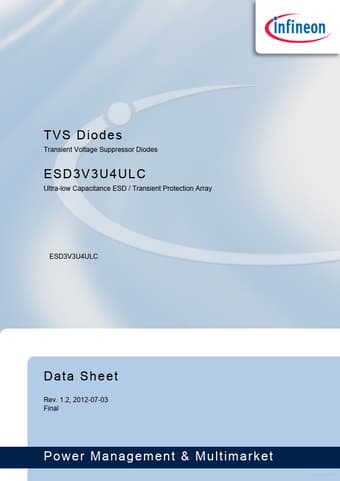

ESD3V3U4ULC Datasheet Preview — Preview of ESD3V3U4ULC PDF

Datasheet Details

Part number	ESD3V3U4ULC
Manufacturer	Infineon
File Size	1.08 MB
Description	Transient Voltage Suppressor Diodes
Datasheet	ESD3V3U4ULC-Infineon.pdf

ESD3V3U4ULC Product details

Description

Pin 9 Pin 8 Pin 7 Pin 6 Pin 1 I/O Pin 2 I/O Pin 4 I/O Pin 5 I/O GND Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 3 b) Schematic diagram a) Pin configuration Figure 1 Table 1 Type ESD3V3U4ULC Pin Configuration and Schematic Diagram Ordering Information Package TSLP-9-1 Configuration 4 lines, uni-directional Marking code Z2 Final Data Sheet 4 Rev.1.2, 2012-07-03 Free Datasheet http://www.Datasheet4U.com ESD3V3U4ULC Characteristics 3 Characteristics Table 2 Parameter Maximum Rating

Features

0-4-4 (EFT) : 2.5 kV (5/50ns).
IEC61000-4-5 (Surge) : 3 A (8/20μs) Maximum working voltage: VRWM = 3.3 V Ultra low capacitance CL = 0.4 pF I/O to GND (typical) Very low clamping voltage: VCL = 8 V at IPP = 16 A (typical) Very low dynamic resistance: RDYN = 0.19 Ω (typical) TSLP-9-1 package with pad pitch 0.5 mm, optimized pad design to simplify PCB layout Pb-free and halogen free package (RoHS compliant) 1.2.
