ESD3V3S2B - ULTRA LOW CLAMPING BI-DIRECTIONAL ESD TRANSIENT PROTECTION DIODE

Description

The UTC ESD3V3S2B is ultra-low clamping ESD transient bidirectional protection diode, it uses UTC’s advanced technology to provide customers with low leakage current and high integration, etc.

The UTC ESD3V3S2B is suitable for ESD protection and high density boards.

Features

  • Bi-directional, symmetrical working voltage.
  • Ultra low clamping voltage.
  • Ultra low dynamic resistance.
  • SYMBOL TVS DIODE.

📥 Download Datasheet

📁 Similar Datasheet

Other Datasheets by UTC
  • ESD5V0L1B - ULTRA LOW CLAMPING BI-DIRECTIONAL ESD TRANSIENT PROTECTION DIODE
  • ESD6V2S1B - ULTRA LOW CLAMPING BI-DIRECTIONAL ESD TRANSIENT PROTECTION DIODE

Full PDF Text Transcription

Click to expand full text

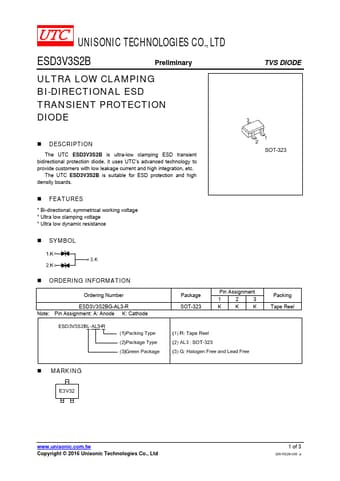

UNISONIC TECHNOLOGIES CO., LTD ESD3V3S2B Preliminary ULTRA LOW CLAMPING BI-DIRECTIONAL ESD TRANSIENT PROTECTION DIODE  DESCRIPTION The UTC ESD3V3S2B is ultra-low clamping ESD transient bidirectional protection diode, it uses UTC’s advanced technology to provide customers with low leakage current and high integration, etc. The UTC ESD3V3S2B is suitable for ESD protection and high density boards.  FEATURES * Bi-directional, symmetrical working voltage * Ultra low clamping voltage * Ultra low dynamic resistance  SYMBOL TVS DIODE  ORDERING INFORMATION Ordering Number ESD3V3S2BG-AL3-R Note: Pin Assignment: A: Anode K: Cathode Package SOT-323 Pin Assignment 123 KKK Packing Tape Reel  MARKING www.unisonic.com.tw Copyright © 2016 Unisonic Technologies Co., Ltd 1 of 3 QW-R229-005 .
