ESD3V3T2B - ESD Protection Device

Features

  • Low Leakage.
  • Low Clamping Voltage.
  • Moisture Sensitivity Level 1.
  • Halogen Free. “Green” Device (Note 1).
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings IEC61000-4-2 (ESD) Peak Pulse Power (8/20μs)(Note2) Operating Junction Temperature Range Storage Temperature Range Air Contact PPK TJ TSTG ±30KV ±30KV 250W -55°C to +150°C -55°C to.

📥 Download Datasheet

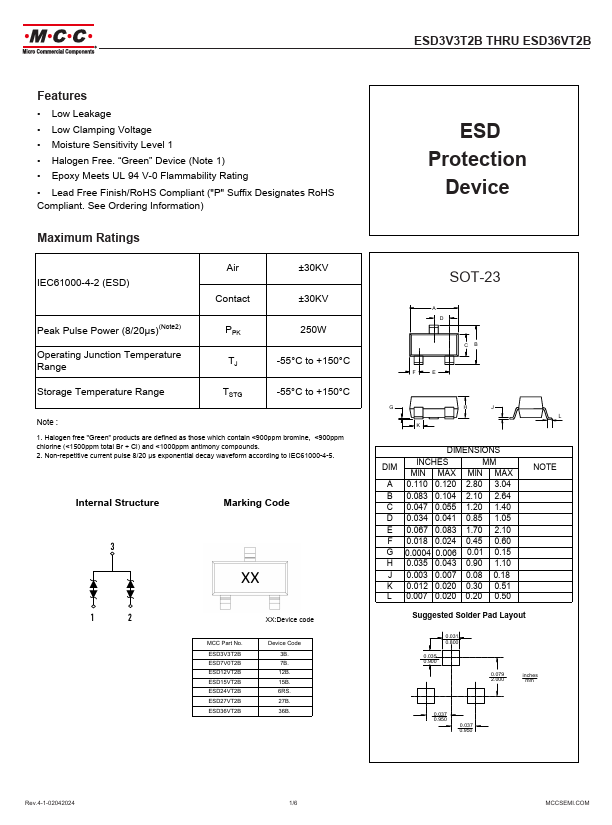

Datasheet preview – ESD3V3T2B

📁 Similar Datasheet

  • ESD3V3CA - Transient Voltage Suppressors (JGD)
  • ESD3V3D5 - ESD Protection Devices (Micro Commercial Components)
  • ESD3V3D7 - ESD Protection (Micro Commercial Components)
  • ESD3V3S2B - ULTRA LOW CLAMPING BI-DIRECTIONAL ESD TRANSIENT PROTECTION DIODE (UTC)
  • ESD3V3U1U - TVS Diode (Infineon)
  • ESD3V3U4ULC - Transient Voltage Suppressor Diodes (Infineon)
  • ESD3V3XU1BL - TVS Diode (Infineon)
  • ESD3.3V23T-2A - Transient Voltage Suppressors Array (SOCAY)
  • ESD3.3V23T-2LC - Transient Voltage Suppressors Array (SOCAY)
  • ESD3.3V23T-2LC - Transient Voltage Suppressors Array (msksemi)
Other Datasheets by MCC

Full PDF Text Transcription

Click to expand full text
ESD3V3T2B THRU ESD36VT2B Features • Low Leakage • Low Clamping Voltage • Moisture Sensitivity Level 1 • Halogen Free. “Green” Device (Note 1) • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings IEC61000-4-2 (ESD) Peak Pulse Power (8/20μs)(Note2) Operating Junction Temperature Range Storage Temperature Range Air Contact PPK TJ TSTG ±30KV ±30KV 250W -55°C to +150°C -55°C to +150°C Note : 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. 2. Non-repetitive current pulse 8/20 µs exponential decay waveform according to IEC61000-4-5.
