ESD102-U4-05L - Transient Voltage Suppressor Diodes

Infineon

📥 Download Datasheet

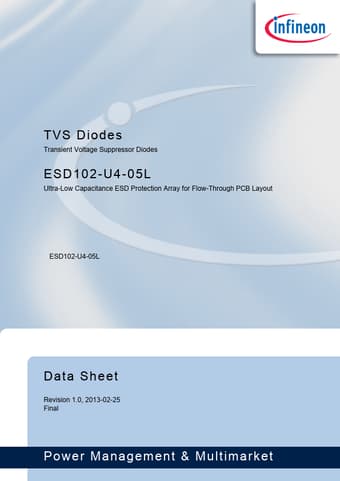

ESD102-U4-05L Datasheet Preview — Preview of ESD102-U4-05L PDF

Datasheet Details

Part number	ESD102-U4-05L
Manufacturer	Infineon
File Size	1.35 MB
Description	Transient Voltage Suppressor Diodes
Datasheet	ESD102-U4-05L-Infineon.pdf

ESD102-U4-05L Product details

Description

Pin 5 Pin 4 Pin 1 Pin 3 Pin 4 Pin 5 I/O I/O I/O I/O Pin 1 Pin 2 Pin 3 a) Pin configuration GND Pin 2 b) Schematic diagram Figure 1 Pin Configuration and Schematic Diagram Table 1 Ordering Information Type Package ESD102-U4-05L TSLP-5-2 Configuration 4 lines, uni-directional Final Data Sheet 4 c)Equivalent circuit per diode PG -TSLP -5_2_PinConf_and_SchematicDiagi.vsd Marking code A Revision 1.0, 2013-02-25 2 Characteristics ESD102-U4-05L Characteristics Table 2 Maximum Rating at

Features

ESD / transient protection of high speed data lines exceeding:.
IEC61000-4-2 (ESD): ±24 kV (air), ±20 kV (contact).
IEC61000-4-4 (EFT): ±60 A / ±3 kV (5/50ns).
IEC61000-4-5 (Surge): ±3.5 A (8/20μs).
Maximum working voltage: VRWM = 3.3 V.
Ultra low capacitance:.
CL = 0.2 pF I/O to I/O (typical).
CL = 0.4 pF I/O to GND (typical).
Extremely low leakage voltage: 1 nA (typical).
Very low clamping voltage: VCL =.
