ESD1000 - OEM Bluetooth-Serial Module

ESD1000 Datasheet Preview — Preview of ESD1000 PDF

Datasheet Details

Part number	ESD1000
Manufacturer	SENA
File Size	414.97 KB
Description	OEM Bluetooth-Serial Module
Datasheet	ESD1000_SENA.pdf

ESD1000 Product details

Description

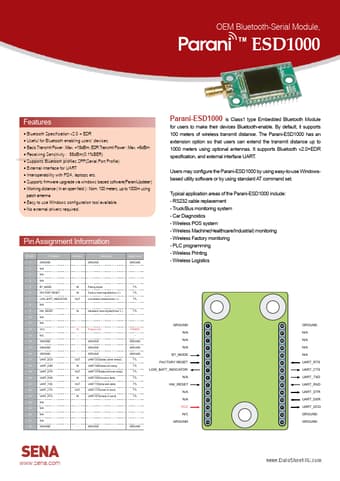

Signal Level GROUND GROUND N/A N/A N/A BT_MODE FACTORY RESET LOW_BATT_INDICATOR N/A HW_RESET N/A N/A VCC N/C GROUND 1 2 3 4 5 6 7 8 9 10 11 12 13 14 28 27 26 25 24 23 22 21 20 19 18 17 16 15 GROUND N/A N/A N/A N/A UART_RTS UART_CTS UART_TXD UART_RXD UART_DTR UART_DSR UART_DCD GROUND GROUND www.sena.com OEM Bluetooth-Serial Module, ESD1000 Specifications Serial Interface: - UART - 2mm Header 14 x 2 - Serial UART speed up to 921.6kbps - CTS/RTS flow control, DTR/DSR for loop-back & full tr

Features

Bluetooth Specification v2.0 + EDR.
Useful for Bluetooth-enabling users’ devices.
Basic Transmit Power : Max. +18dBm, EDR Transmit Power : Max. +6dBm.
Receiving Sensitivity : -88dBm(0.1%BER) www. DataSheet4U. com.
Supports Bluetooth profiles SPP(Serial Port Profile).
External interface for UART.
Interoperability with PDA, laptops etc.
Supports firmware upgrade via windows-based software(ParaniUpdater).
Working dista.
