ESD105-B1-02ELS - Ultra Low Capacitance Bi-directional TVS Diode

Leiditech

📥 Download Datasheet

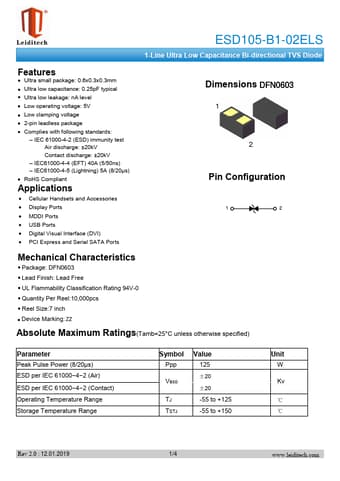

ESD105-B1-02ELS Datasheet Preview — Preview of ESD105-B1-02ELS PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ESD105-B1-02ELS
Manufacturer	Leiditech
File Size	2.01 MB
Description	Ultra Low Capacitance Bi-directional TVS Diode
Datasheet	ESD105-B1-02ELS-Leiditech.pdf

ESD105-B1-02ELS Product details

Features

Ultra small package: 0.6x0.3x0.3mm.
Ultra low capacitance: 0.25pF typical.
Ultra low leakage: nA level.
Low operating voltage: 5V.
Low clamping voltage.
2-pin leadless package.
Complies with following standards:.
IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±20kV.
IEC61000-4-4 (EFT) 40A (5/50ns).
IEC61000-4-5 (Lightning) 5A (8/20μs).
RoHS Compliant.
