BGA824N6 - Silicon Germanium Low Noise Amplifier

BGA824N6 Description

BGA824N6 BGA824N6 Silicon Germanium Low Noise Amplifier for Global Navigation Satellite Systems (GNSS) .
The BGA824N6 is a front-end low noise amplifier for Global Navigation Satellite Systems (GNSS) from 1164 MHz to 1615 MHz like GPS, GLONASS, Beidou, Ga.

BGA824N6 Features

* Operating frequencies: 1164 - 1615 MHz
* Insertion power gain: 17.0 dB
* Input 1 dB compression point: -6 dBm
* Low noise figure: 0.55 dB
* Low current consumption: 3.8 mA
* Digital on/off switch
* Ultra small TSNP-6-2 and TSNP-6-10 leadless

BGA824N6 Applications

* according to the relevant tests of JEDEC47/20/22 Block diagram VCC PON AI ESD GND AO BGA824N6_Blockdiagram. vsd Data Sheet www. infineon. com Revision 3.5 2023-01-12 BGA824N6 Silicon Germanium Low Noise Amplifier for Global Navigation Satellite Systems Table of Contents Table of Contents Table

📥 Download Datasheet

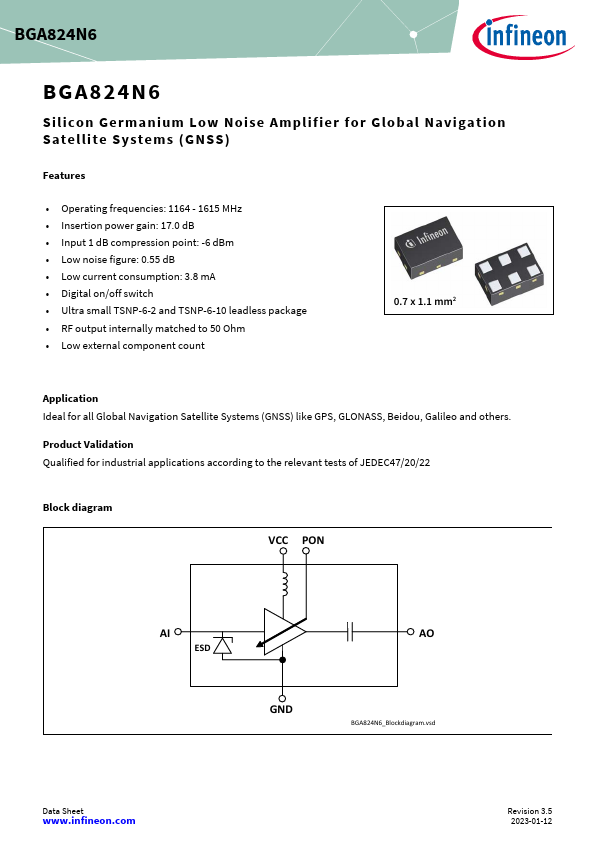

Preview of BGA824N6 PDF

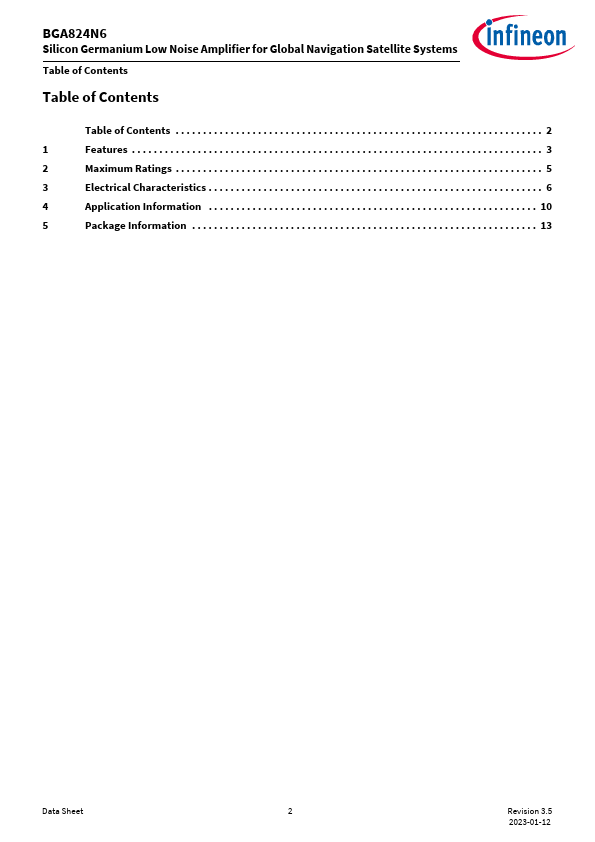

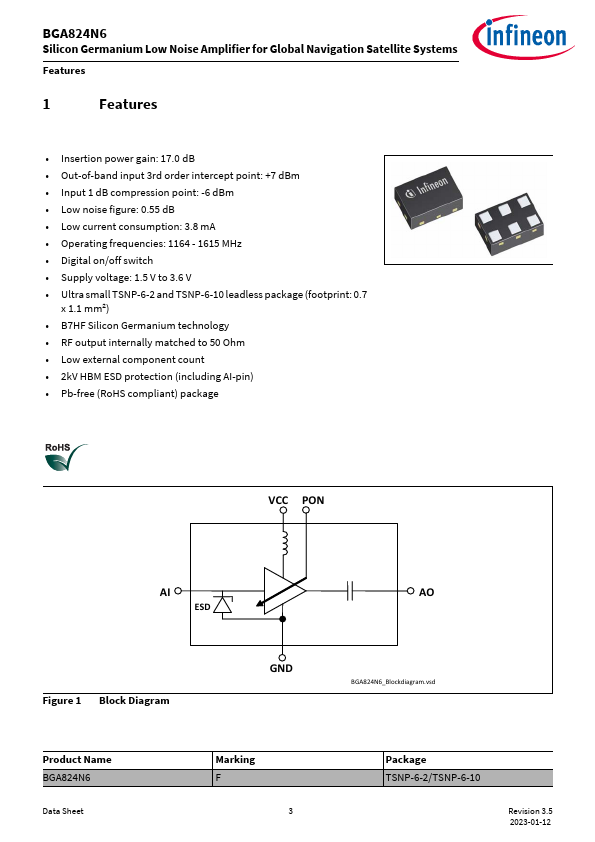

datasheet Preview Page 2 datasheet Preview Page 3
