BGA123N6 - Ultra Low Current Low Noise Amplifier

Infineon

📥 Download Datasheet

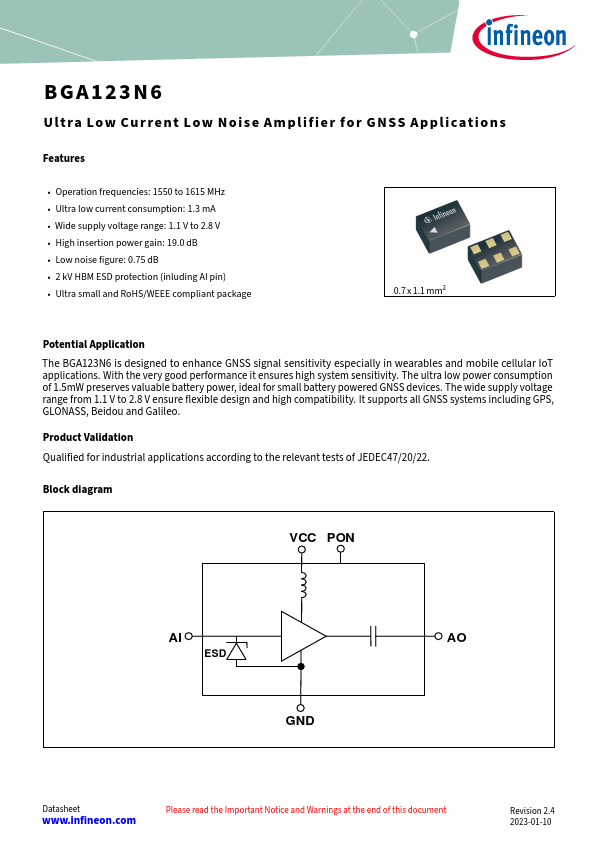

BGA123N6 Datasheet Preview — Preview of BGA123N6 PDF

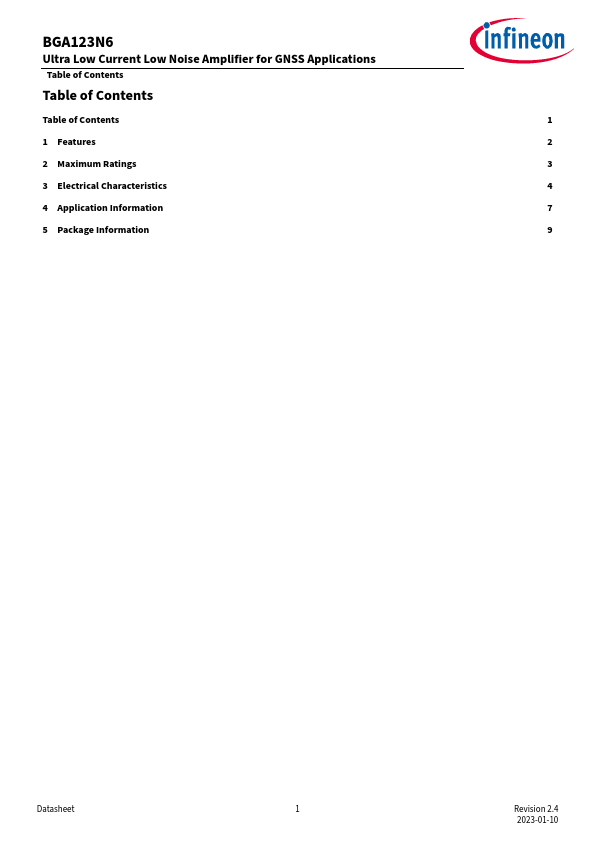

datasheet Preview Page 2

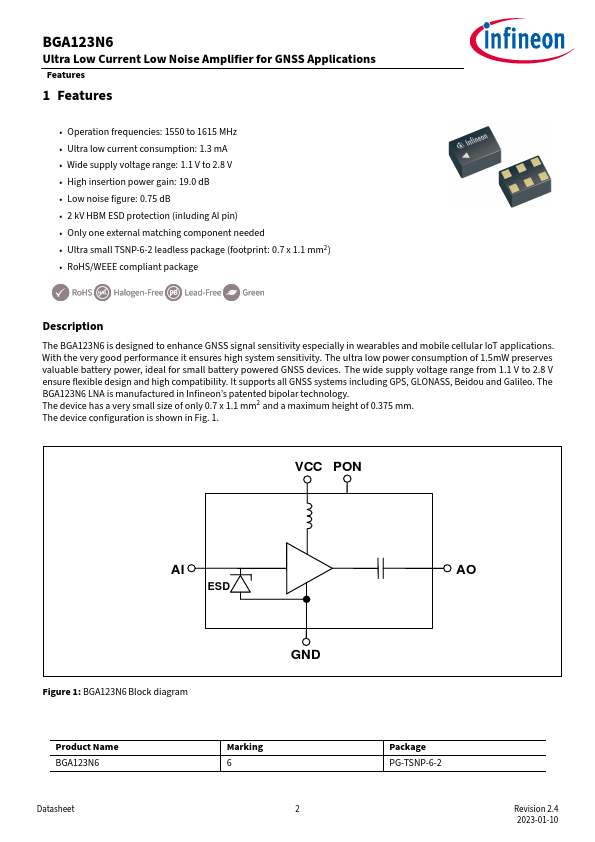

datasheet Preview Page 3

Datasheet Details

Part number	BGA123N6
Manufacturer	Infineon
File Size	819.01 KB
Description	Ultra Low Current Low Noise Amplifier
Datasheet	BGA123N6-Infineon.pdf

BGA123N6 Product details

Description

The BGA123N6 is designed to enhance GNSS signal sensitivity especially in wearables and mobile cellular IoT applications.

Features

Operation frequencies: 1550 to 1615 MHz.
Ultra low current consumption: 1.3 mA.
Wide supply voltage range: 1.1 V to 2.8 V.
High insertion power gain: 19.0 dB.
Low noise figure: 0.75 dB.
2 kV HBM ESD protection (inluding AI pin).
Ultra small and RoHS/WEEE compliant package 0.7 x 1.1 mm2 Potential.
