BGA125N6 - Ultra Low Current Low Noise Amplifier

Infineon

📥 Download Datasheet

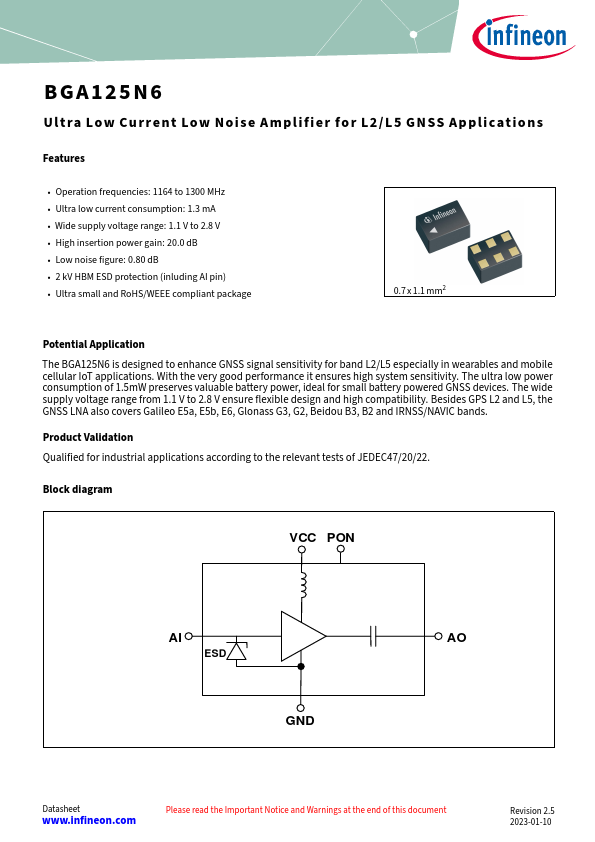

BGA125N6 Datasheet Preview — Preview of BGA125N6 PDF

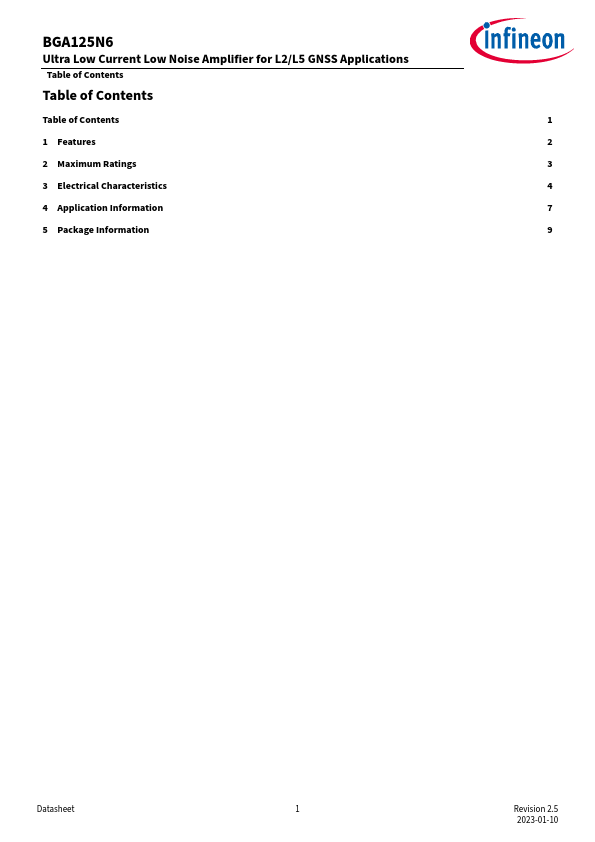

datasheet Preview Page 2

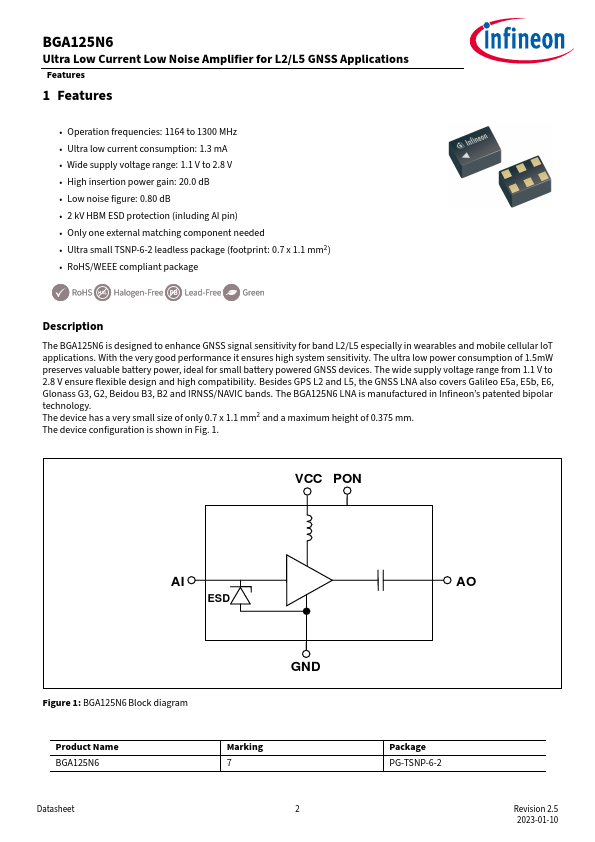

datasheet Preview Page 3

Datasheet Details

Part number	BGA125N6
Manufacturer	Infineon
File Size	815.97 KB
Description	Ultra Low Current Low Noise Amplifier
Datasheet	BGA125N6-Infineon.pdf

BGA125N6 Product details

Description

The BGA125N6 is designed to enhance GNSS signal sensitivity for band L2/L5 especially in wearables and mobile cellular IoT applications.

Features

Operation frequencies: 1164 to 1300 MHz.
Ultra low current consumption: 1.3 mA.
Wide supply voltage range: 1.1 V to 2.8 V.
High insertion power gain: 20.0 dB.
Low noise figure: 0.80 dB.
2 kV HBM ESD protection (inluding AI pin).
Ultra small and RoHS/WEEE compliant package 0.7 x 1.1 mm2 Potential.
