TLE4917 - Low Power Hall Switch

Datasheet Summary

Description

The TLE 4917 is an Integrated Hall-Effect Sensor designed specifically to meet the requirements of low-power devices.

e.g.

5.5V.

Features

Micro power design.
2.4 V to 5.5 V battery operation.
High sensitivity and high stability of the magnetic switching points.
High resistance to mechanical stress.
Digital output signal.
Switching for both poles of a magnet (omnipolar).
Programming pin for the switching direction of the output Functional.

Datasheet Details

Part number	TLE4917
Manufacturer	Infineon Technologies AG
File Size	259.58 KB
Description	Low Power Hall Switch
Datasheet	TLE4917 Datasheet

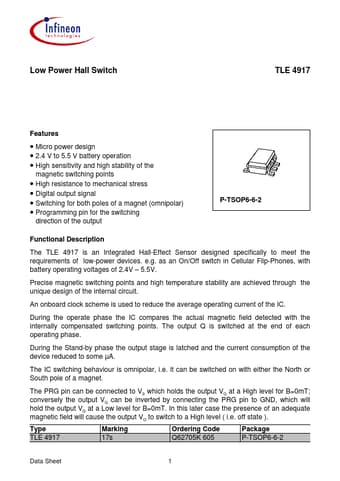

Additional preview pages of the TLE4917 datasheet.

📁 Similar Datasheet

TLE4910G - Hall Effect IC (Infineon Technologies)

TLE4905 - Uni- and Bipolar Hall IC Switches (Siemens Semiconductor Group)

TLE4905G - Uni- and Bipolar Hall IC Switches (Siemens Semiconductor Group)

TLE4905L - Uni- and Bipolar Hall IC Switches (Siemens Semiconductor Group)

TLE4906H - High Precision Hall-Effect Switch (Infineon)

TLE4906K - High Precision Hall Effect Switch (Infineon Technologies)

TLE4906L - High Precision Hall-Effect Switch (Infineon)

TLE4921-3U - Dynamic Differential Hall Effect Sensor IC (Infineon)

TLE4921-5U - Dynamic Differential Hall Effect Sensor IC Detection (Infineon)

Full PDF Text Transcription

Click to expand full text

Low Power Hall Switch TLE 4917 Features • Micro power design • 2.4 V to 5.5 V battery operation • High sensitivity and high stability of the magnetic switching points • High resistance to mechanical stress • Digital output signal • Switching for both poles of a magnet (omnipolar) • Programming pin for the switching direction of the output Functional Description The TLE 4917 is an Integrated Hall-Effect Sensor designed specifically to meet the requirements of low-power devices. e.g. as an On/Off switch in Cellular Flip-Phones, with battery operating voltages of 2.4V – 5.5V. Precise magnetic switching points and high temperature stability are achieved through the unique design of the internal circuit. An onboard clock scheme is used to reduce the average operating current of the IC.
