TLE4906L - High Precision Hall-Effect Switch

Download the TLE4906L datasheet PDF (TLE4906H included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for high precision hall-effect switch.

Description

.

.3 1.2 Pin configur

Features

  • 2.7V to 24V supply voltage.
  • Operation from unregulated power supply.
  • High sensitivity and high stability of the magnetic switching points.
  • High resistance to mechanical stress by Active Error Compensation.
  • Reverse battery protection (-18V).
  • Superior temperature stability.
  • Peak temperatures up to 195°C without damage.
  • Low jitter (typ. 1µs).
  • High ESD performance (± 6kV HBM).
  • Digital output signal.
  • S.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TLE4906H-Infineon.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TLE4906L
Manufacturer Infineon
File Size 366.02 KB
Description High Precision Hall-Effect Switch
Datasheet download datasheet TLE4906L Datasheet

📁 Similar Datasheet

  • TLE4906-2K - High Precision Hall-Effect Switch (Infineon Technologies AG)
  • TLE4906K - High Precision Hall Effect Switch (Infineon Technologies)
  • TLE4905 - Uni- and Bipolar Hall IC Switches (Siemens Semiconductor Group)
  • TLE4905 - Uni- and Bipolar Hall IC Switches (Siemens Semiconductor Group)
  • TLE4905 - Uni- and Bipolar Hall IC Switches (Infineon Technologies AG)
  • TLE4905G - Uni- and Bipolar Hall IC Switches (Siemens Semiconductor Group)
  • TLE4905G - Uni- and Bipolar Hall IC Switches (Infineon Technologies AG)
  • TLE4905L - Uni- and Bipolar Hall IC Switches (Siemens Semiconductor Group)
  • TLE4905L - Uni- and Bipolar Hall IC Switches (Infineon Technologies AG)
  • TLE4910G - Hall Effect IC (Infineon Technologies)
Other Datasheets by Infineon

Full PDF Text Transcription

Click to expand full text

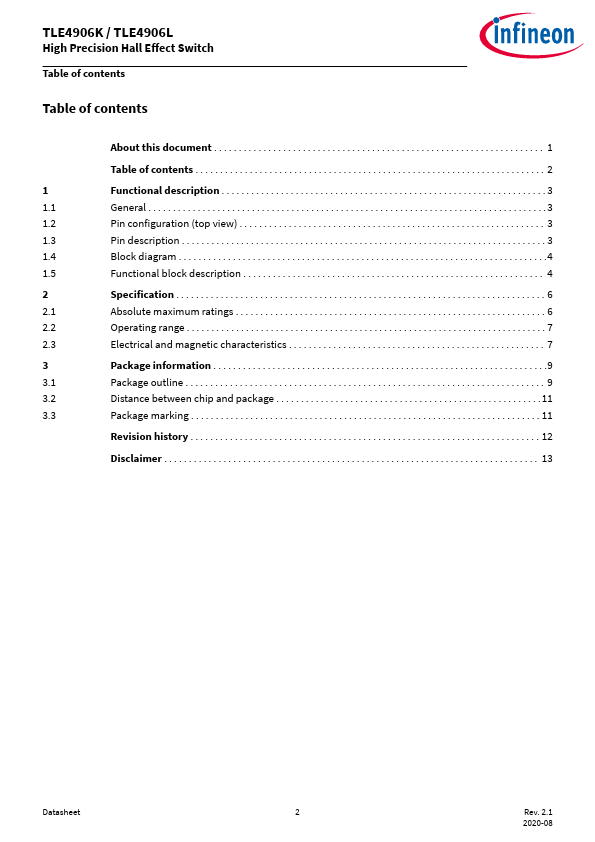

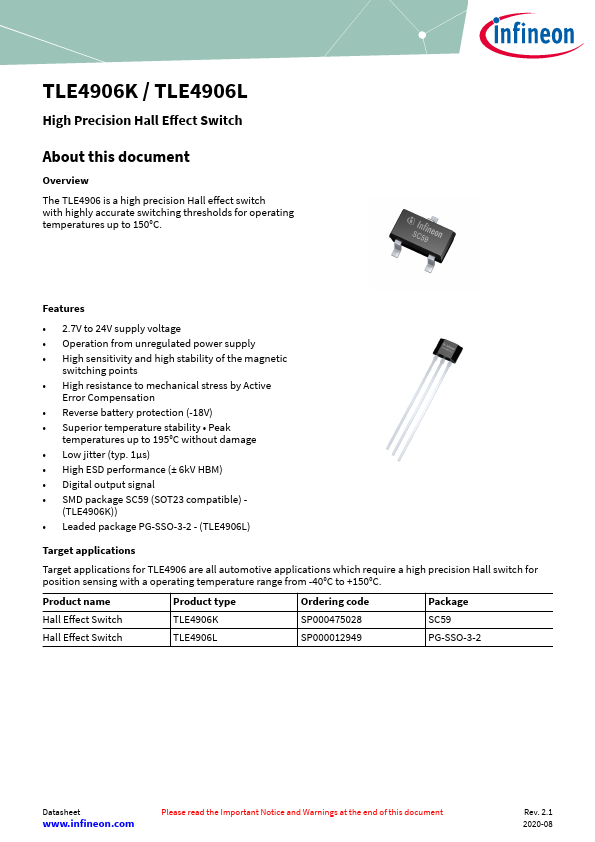

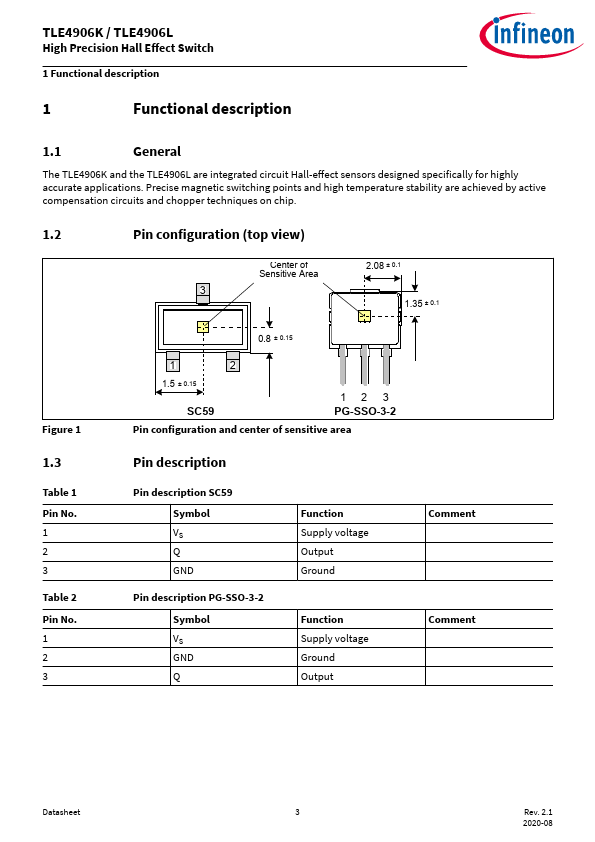

TLE4906K / TLE4906L High Precision Hall Effect Switch About this document Overview The TLE4906 is a high precision Hall effect switch with highly accurate switching thresholds for operating temperatures up to 150°C. Features • 2.7V to 24V supply voltage • Operation from unregulated power supply • High sensitivity and high stability of the magnetic switching points • High resistance to mechanical stress by Active Error Compensation • Reverse battery protection (-18V) • Superior temperature stability • Peak temperatures up to 195°C without damage • Low jitter (typ.
