Datasheet Details
| Part number | TLE4905L |
|---|---|
| Manufacturer | Infineon Technologies AG |
| File Size | 272.32 KB |
| Description | Uni- and Bipolar Hall IC Switches |
| Datasheet |
 TLE4905L Datasheet
|
|
|
General Description
The circuit includes Hall generator, amplifier and Schmitt-Trigger on one chip.
The internal reference provides the supply voltage for the components.
A magnetic field perpendicular to the chip surface induces a voltage at the hall probe.
Key Features

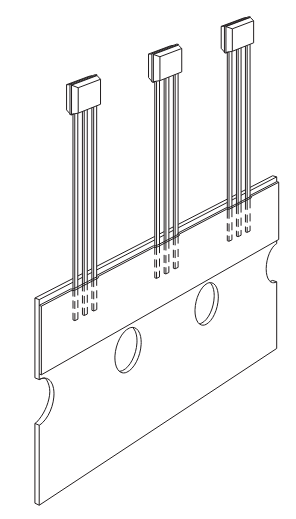

- Temperature compensated magnetic performance Digital output signal For unipolar and alternating magnetic fields Large temperature range Protection against reversed polarity Output protection against electrical disturbances P-SSO-3-2 Type TLE 4905 L TLE 4935 L TLE 4935-2 L TLE 4945 L TLE 4945-2L Marking 05 L 35 L 35 2 45 L 45 2 Ordering Code Q67006-A9120 Q67006-A9112 Q67006-A9143 Q67006-A9163 Q62705-K441 Package P-SSO-3-2 P-SSO-3-2 P.
