PTF210451E - LDMOS RF Power Field Effect Transistor 45 W/ 2110-2170 MHz

Infineon Technologies AG

Datasheet Details

Part number	PTF210451E
Manufacturer	Infineon ↗ Technologies AG
File Size	406.91 KB
Description	LDMOS RF Power Field Effect Transistor 45 W/ 2110-2170 MHz

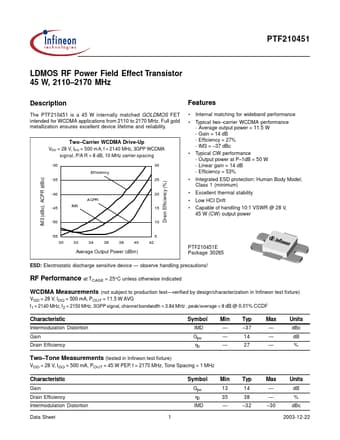

Datasheet	PTF210451E_InfineonTechnologiesAG.pdf

The PTF210451 is a 45 W internally matched GOLDMOS FET intended for WCDMA applications from 2110 to 2170 MHz.

Internal matching for wideband performance Typical two.
carrier WCDMA performance - Average output power = 11.5 W - Gain = 14 dB - Efficiency = 27% - IM3 =.
37 dBc Typical CW performance - Output power at P.
1dB = 50 W - Linear gain = 14 dB - Efficiency = 53% Integrated ESD protection: Human Body Model, Class 1 (minimum) Excellent thermal stability Low HCI Drift Capable of handling 10:1 VSWR @ 28 V, 45 W (CW) output power Two.
Carrier WCDMA Drive.
