BAR88-02V Datasheet - Infineon Technologies AG

BAR88-02V Silicon PIN Diode

BAR88 Silicon PIN Diode Optimized for low current antenna switches in hand held applications Very low forward resistance (typ. 1.5 Ω @ IF = 1 mA) Low capacitance at zero volt reverse bias at frequencies above 1 GHz (typ. 0.28 pF) Very low signal distortion BAR88-02L BAR88-02V BAR88-07L4 4 3 BAR88-099L4 4 3 1 2 D 1 D 2 D 1 D 2 1 2 1 2 Type BAR88-02L BAR88-02V BAR88-07L4 BAR88-099L4 Package TSLP-2-1 SC79 TSLP-4-4 TSLP-4-4 Configurat.

BAR88-02V Datasheet (476.23 KB)

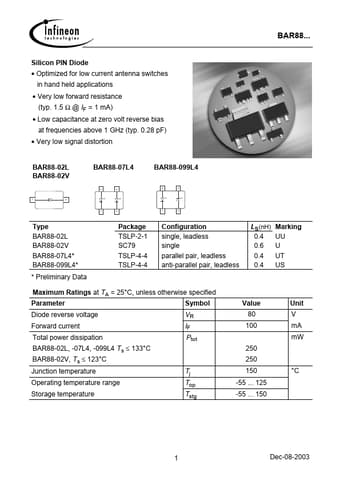

BAR88-02V Datasheet Preview — Preview of BAR88-02V PDF

Datasheet Details

Part number:

BAR88-02V

Manufacturer:

Infineon ↗ Technologies AG

File Size:

476.23 KB

Description:

Silicon pin diode.
