BAR81 - Preliminary data Silicon RF Switching Diode (Design for use in shunt configuration High shunt signal isolation Low shunt insertion loss)

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAR81 Silicon RF Switching Diodes Infineon Technologies AG
BAR81W Silicon RF Switching Diode Infineon Technologies AG
BAR80 Silicon RF Switching Diode Infineon Technologies AG
BAR88 Silicon PIN Diode Infineon Technologies AG
BAR88-02L Silicon PIN Diode Infineon Technologies AG

Other Datasheets by Siemens Semiconductor Group (now Infineon)

Part Number Description
BAR81W Silicon RF Switching Diode Preliminary data (Design for use in shunt configuration High shunt signal isolation Low shunt insertion loss)
BAR80 Silicon RF Switching Diode (Design for use in shunt configuration Hight shunt signal isolation Low shunt insertion loss)
BAR14 Silicon PIN Diodes
BAR14-1 Silicon PIN Diodes
BAR15-1 Silicon PIN Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

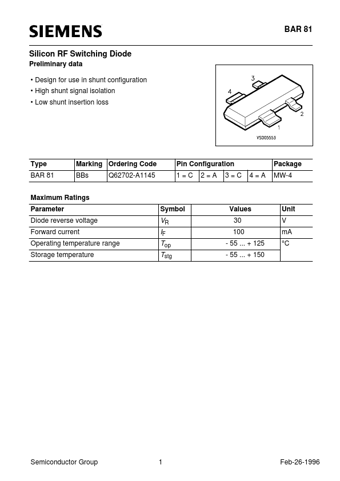

BAR 81 Silicon RF Switching Diode Preliminary data • Design for use in shunt configuration • High shunt signal isolation • Low shunt insertion loss Type BAR 81 Marking Ordering Code BBs Q62702Q62702-A1145 Pin Configuration 1=C 2=A 3=C 4=A Package MW-4 Maximum Ratings Parameter Diode reverse voltage Forward current Operating temperature range Storage temperature Symbol Values 30 100 - 55 ... + 125 - 55 ... + 150 Unit V mA °C VR IF Top Tstg Semiconductor Group 1 Feb-26-1996 BAR 81 Electrical Characteristics at TA=25°C, unless otherwise specified Parameter Symbol min. DC characteristics Reverse current Values typ. max. Unit IR 0.93 20 nA V 1 VR = 20 V, TA = 25 °C Forward voltage VF IF = 100 mA AC characteristics Diode capacitance CT 0.6 0.57 0.7 0.
