MJD44H11 - Silicon NPN Power Transistor

The MJD44H11 by Inchange Semiconductor is a Silicon NPN Power Transistor. Below is the official datasheet preview.

📥 Download Datasheet

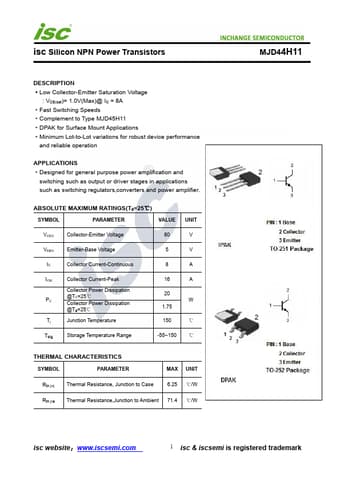

Official preview page of the MJD44H11 Silicon NPN Power Transistor datasheet (Inchange Semiconductor).

Datasheet Details

Part number MJD44H11
Manufacturer Inchange Semiconductor
File Size 243.20 KB
Description Silicon NPN Power Transistor
Datasheet download datasheet MJD44H11-InchangeSemiconductor.pdf
Additional preview pages of the MJD44H11 datasheet.

MJD44H11 Product details

Description

Low Collector-Emitter Saturation Voltage : VCE(sat)= 1.0V(Max)@ IC = 8A Fast Switching Speeds Complement to Type MJD45H11 DPAK for Surface Mount Applications Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for general purpose power amplification and switching such as output or driver stages in applications such as switching regulators,converters and power amplifier.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL
