MJD42C - Silicon PNP Power Transistor

The MJD42C by Inchange Semiconductor is a Silicon PNP Power Transistor. Below is the official datasheet preview.

📥 Download Datasheet

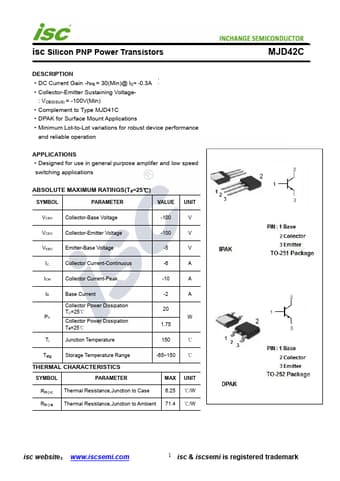

Official preview page of the MJD42C Silicon PNP Power Transistor datasheet (Inchange Semiconductor).

Datasheet Details

Part number MJD42C
Manufacturer Inchange Semiconductor
File Size 241.03 KB
Description Silicon PNP Power Transistor
Datasheet download datasheet MJD42C-InchangeSemiconductor.pdf
Additional preview pages of the MJD42C datasheet.

MJD42C Product details

Description

DC Current Gain -hFE = 30(Min)@ IC= -0.3A Collector-Emitter Sustaining Voltage- : VCEO(SUS) = -100V(Min) Complement to Type MJD41C DPAK for Surface Mount Applications Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for use in general purpose amplifer and low speed switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -100 V VCEO Collector-Em
