KTD2059 - Silicon NPN Power Transistors

The KTD2059 by Inchange Semiconductor is a Silicon NPN Power Transistors. Below is the official datasheet preview.

📥 Download Datasheet

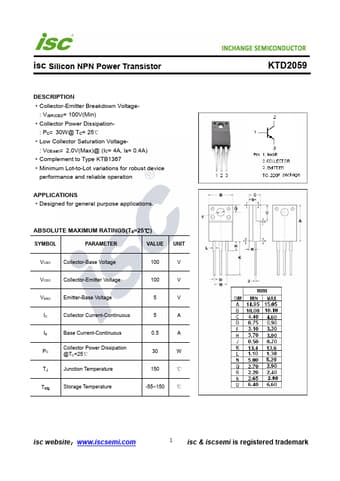

Official preview page of the KTD2059 Silicon NPN Power Transistors datasheet (Inchange Semiconductor).

Datasheet Details

Part number KTD2059
Manufacturer Inchange Semiconductor
File Size 216.58 KB
Description Silicon NPN Power Transistors
Datasheet download datasheet KTD2059-InchangeSemiconductor.pdf
Additional preview pages of the KTD2059 datasheet.

KTD2059 Product details

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 100V(Min) Collector Power Dissipation- : PC= 30W@ TC= 25℃ Low Collector Saturation Voltage- : VCE(sat)= 2.0V(Max)@ (IC= 4A, IB= 0.4A) Complement to Type KTB1367 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for general purpose applications.
