KTD2066 - EPITAXIAL PLANAR NPN TRANSISTOR

Features

  • High DC Current Gain : hFE=500 1500(IC=1A). Low Collector Saturation Voltage : VCE(sat)=0.35V(Max. ) (IC=3A).

📥 Download Datasheet

Datasheet Details

Part number KTD2066
Manufacturer KEC
File Size 451.39 KB
Description EPITAXIAL PLANAR NPN TRANSISTOR
Datasheet download datasheet KTD2066 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KTD2060 Silicon NPN transistor BLUE ROCKET ELECTRONICS
KTD2060 Silicon NPN Power Transistors Inchange Semiconductor
KTD2061 Silicon NPN Power Transistors Inchange Semiconductor
KTD2058 NPN Transistor SeCoS
KTD2058 Silicon NPN Power Transistors Inchange Semiconductor

Other Datasheets by KEC

Part Number Description
KTD2060 TRIPLE DIFFUSED NPN TRANSISTOR
KTD2061 EPITAXIAL PLANAR NPN TRANSISTOR
KTD2058 TRIPLE DIFFUSED NPN TRANSISTOR
KTD2059 TRIPLE DIFFUSED NPN TRANSISTOR
KTD2092 EPITAXIAL PLANAR NPN TRANSISTOR

Full PDF Text Transcription

Click to expand full text

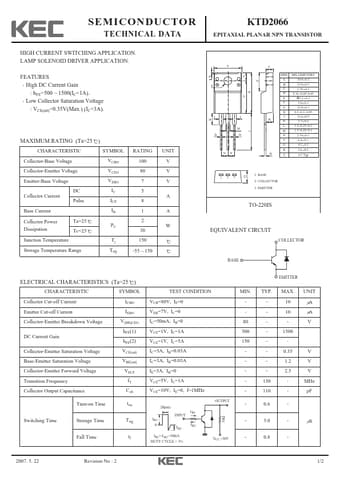

SEMICONDUCTOR TECHNICAL DATA KTD2066 EPITAXIAL PLANAR NPN TRANSISTOR HIGH CURRENT SWITCHING APPLICATION. LAMP SOLENOID DRIVER APPLICATION. FEATURES High DC Current Gain : hFE=500 1500(IC=1A). Low Collector Saturation Voltage : VCE(sat)=0.35V(Max.) (IC=3A). MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL Collector-Base Voltage Collector-Emitter Voltage VCBO VCEO Emitter-Base Voltage VEBO Collector Current DC Pulse IC ICP Base Current IB Collector Power Dissipation Ta=25 Tc=25 PC Junction Temperature Tj Storage Temperature Range Tstg RATING 100 80 7 5 8 1 2 30 150 -55 150 UNIT V V V A A W K A S E LL M DD NN J GF B P C DIM MILLIMETERS A 10.0+_ 0.3 B 15.0+_ 0.3 C 2.70 +_ 0.3 D 0.76+0.09/-0.05 E Φ3.2 +_ 0.2 F 3.0+_ 0.3 G 12.0+_ 0.3 H 0.5+0.1/-0.05 J 13.6 +_ 0.
