2SK1650 - N-Channel MOSFET Transistor

📥 Download Datasheet

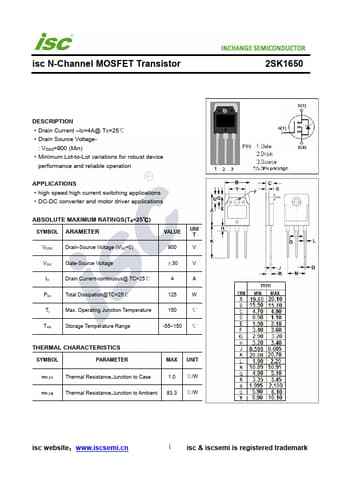

Preview of 2SK1650 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SK1650
Manufacturer Inchange Semiconductor
File Size 217.68 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 2SK1650-InchangeSemiconductor.pdf

2SK1650 Product details

Description

Drain Current ID=4A@ TC=25℃ Drain Source Voltage- : VDSS=900 (Min) Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS high speed high current switching applications DC-DC converter and motor driver applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VDSS Drain-Source Voltage (VGS=0) VALUE UNI T 900 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 4 A Ptot Total Dissipatio
