2SD2583 - Silicon NPN Power Transistor

📥 Download Datasheet

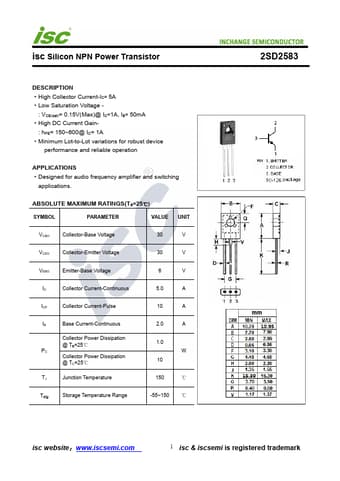

Preview of 2SD2583 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SD2583
Manufacturer Inchange Semiconductor
File Size 207.02 KB
Description Silicon NPN Power Transistor
Datasheet download datasheet 2SD2583-InchangeSemiconductor.pdf

2SD2583 Product details

Description

High Collector Current-IC= 5A Low Saturation Voltage - : VCE(sat)= 0.15V(Max)@ IC=1A, IB= 50mA High DC Current Gain- : hFE= 150~600@ IC= 1A Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for audio frequency amplifier and switching applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 30 V VCEO Collector-Emitter Voltage 30 V VEBO Emitter-Base Voltage
