2SD2161 - Silicon NPN Power Transistor

📥 Download Datasheet

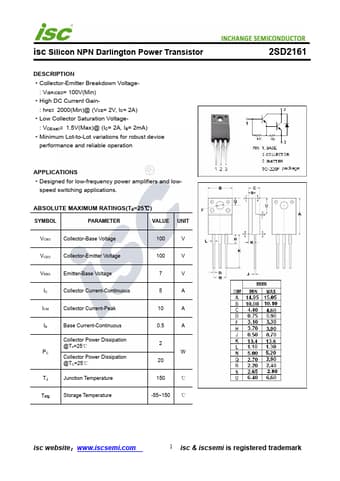

Preview of 2SD2161 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SD2161
Manufacturer Inchange Semiconductor
File Size 200.47 KB
Description Silicon NPN Power Transistor
Datasheet download datasheet 2SD2161-InchangeSemiconductor.pdf

2SD2161 Product details

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 100V(Min) High DC Current Gain- : hFE= 2000(Min)@ (VCE= 2V, IC= 2A) Low Collector Saturation Voltage- : VCE(sat)= 1.5V(Max)@ (IC= 2A, IB= 2mA) Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for low-frequency power amplifiers and low- speed switching applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 100 V
