2SD2118 - Silicon NPN Power Transistor

Description

High current capacity Small and slim package making it easy to make 2SD2118-used set smaller Low collector-to-emitter saturation voltage Fast switching speed 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLIC

📥 Download Datasheet

📁 Similar Datasheet

  • 2SD2118 - NPN Transistor (JCST)
  • 2SD2118 - Low Power Transistor (GME)
  • 2SD2118 - Transistor (Rohm)
  • 2SD2118 - NPN Transistor (SeCoS)
  • 2SD2118 - Silicon NPN transistor (BLUE ROCKET ELECTRONICS)
  • 2SD2118 - Transistor (Kexin)
  • 2SD2118 - NPN Transistor (Transys)
  • 2SD211 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SD211 - NPN Transistor (INCHANGE)
  • 2SD2111 - Silicon NPN Transistor (Hitachi Semiconductor)
Other Datasheets by Inchange Semiconductor

Full PDF Text Transcription

Click to expand full text

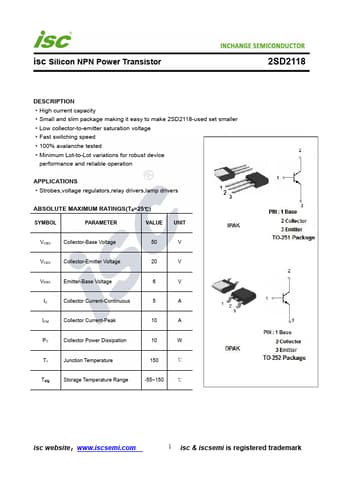

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SD2118 DESCRIPTION ·High current capacity ·Small and slim package making it easy to make 2SD2118-used set smaller ·Low collector-to-emitter saturation voltage ·Fast switching speed ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Strobes,voltage regulators,relay drivers,lamp drivers ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 50 V VCEO Collector-Emitter Voltage 20 V VEBO Emitter-Base Voltage 6 V IC Collector Current-Continuous 5 A ICM Collector Current-Peak 10 A PC Collector Power Dissipation 10 W TJ Junction Temperature 150 ℃ Tstg Storage Temperature Range -55~150 ℃ isc website
