2SD1899-Z - Silicon NPN Power Transistor

Inchange Semiconductor

📥 Download Datasheet

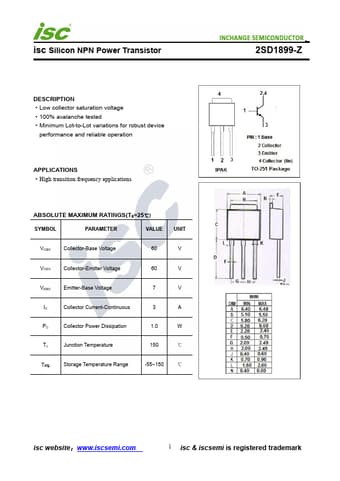

2SD1899-Z Datasheet Preview — Preview of 2SD1899-Z PDF

Datasheet Details

Part number	2SD1899-Z
Manufacturer	Inchange Semiconductor
File Size	213.65 KB
Description	Silicon NPN Power Transistor
Datasheet	2SD1899-Z-InchangeSemiconductor.pdf

2SD1899-Z Product details

Description

Low collector saturation voltage 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS High transition frequency applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 60 V VCEO Collector-Emitter Voltage 60 V VEBO Emitter-Base Voltage 7 V IC Collector Current-Continuous PC Collector Power Dissipation 3 A 1.0 W TJ Junction Temperature 150
