2SD180 - Silicon NPN Power Transistor

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= 70V(Min.) Low Collector Saturation Voltage- : VCE(sat)= 1.5V(Max.)@ IC= 5A Good Linearity of hFE Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Audio frequency power amplifier a

📥 Download Datasheet

📁 Similar Datasheet

  • 2SD1800 - NPN Epitaxial Silicon Transistor (Sanyo Semicon Device)
  • 2SD1801 - Bipolar Transistor (ON Semiconductor)
  • 2SD1801 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SD1802 - NPN Transistor (TRANSYS)
  • 2SD1802 - NPN Epitaxial Planar Silicon Transistors (GME)
  • 2SD1802 - Bipolar Transistor (ON Semiconductor)
  • 2SD1802 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SD1802 - NPN SILICON TRANSISTOR (UTC)
  • 2SD1802 - NPN Transistor (Weitron Technology)
  • 2SD1803 - NPN Transistors (Kexin)
Other Datasheets by Inchange Semiconductor
  • 2SD1801 - Silicon NPN Power Transistor
  • 2SD1802 - Silicon NPN Power Transistor
  • 2SD1803 - TO-126 Silicon NPN Power Transistor
  • 2SD1805 - Silicon NPN Power Transistor
  • 2SD1816 - Silicon NPN Power Transistor
  • 2SD1841 - Silicon NPN Power Transistor
  • 2SD1850 - Power Transistor
  • 2SD1857 - Silicon NPN Power Transistor

Full PDF Text Transcription

Click to expand full text

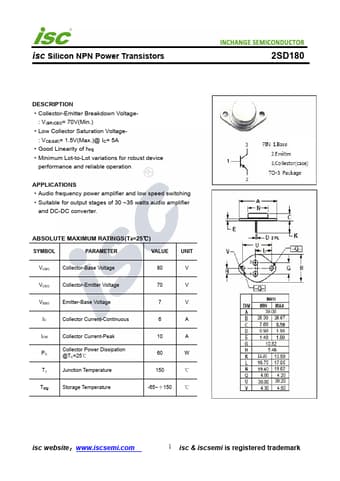

isc Silicon NPN Power Transistors DESCRIPTION ·Collector-Emitter Breakdown Voltage- : V(BR)CEO= 70V(Min.) ·Low Collector Saturation Voltage- : VCE(sat)= 1.5V(Max.)@ IC= 5A ·Good Linearity of hFE ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Audio frequency power amplifier and low speed switching ·Suitable for output stages of 30 ~35 watts audio amplifier and DC-DC converter.
